Maintenance
Operating Instructions 581 - 00.0 - 02/201562
After unscrewing the drain screw (3), drain the water under
pressure from the water separator (2).

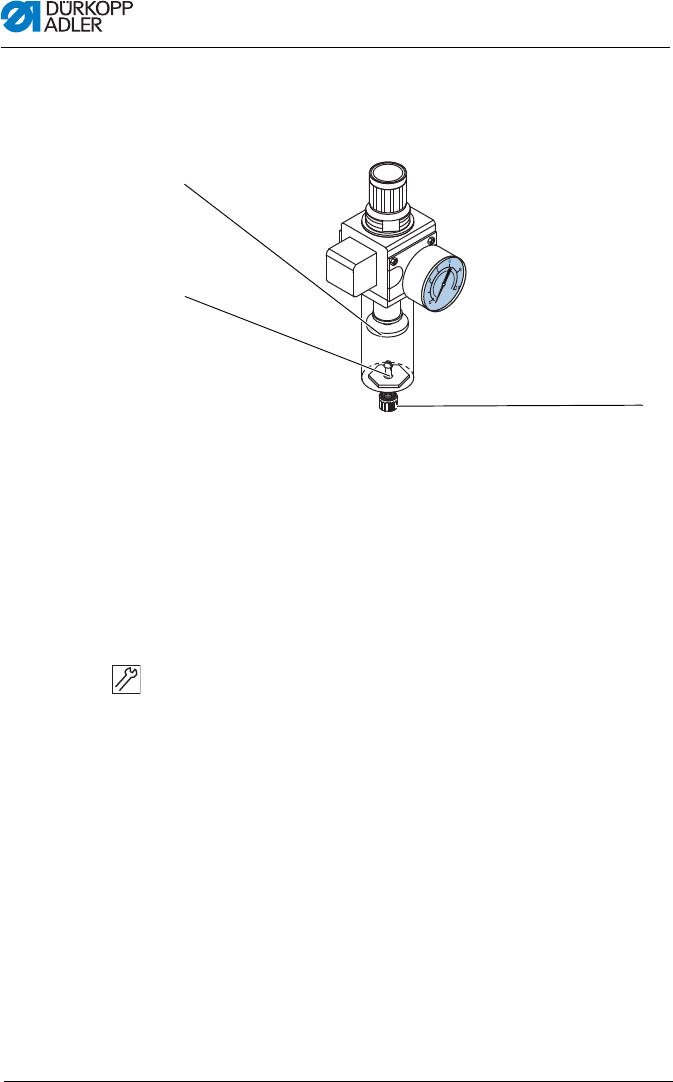

Fig. 34: Checking the water level
6.2 Cleaning
The machine must be cleaned of dust and thread residue daily.
A clean machine provides protection from faults.
To clean the machine:
Step
1. Clean the area of the looper, thread cutter, throat plate and the
sewing head of sewing dust, thread residue and cutting waste.
If a vacuum is available, it is recommended to vacuum the
sewing waste.
2. If required, empty the cutting waste from the suction container.
(1) - Filter element
(2) - Water separator
(3) - Drain screw
①
②
③
