Operation
Operating Instructions 581 - 00.0 - 02/2015 57
To interrupt the sewing process:
Step
1. Press the foot switch.
The sewing procedure was cancelled.
To continue the sewing process:
Step
1. Press the key on the control panel.
Information
You can also use the push buttons on the machine for quick
switch-off.
Removing the completed sewing material for sub-class 151
Step
1. Guide the looper thread and the gimp thread under the thread
clamp (2).
2. Pull both threads from right to left along the blade (1).
The threads are cut.

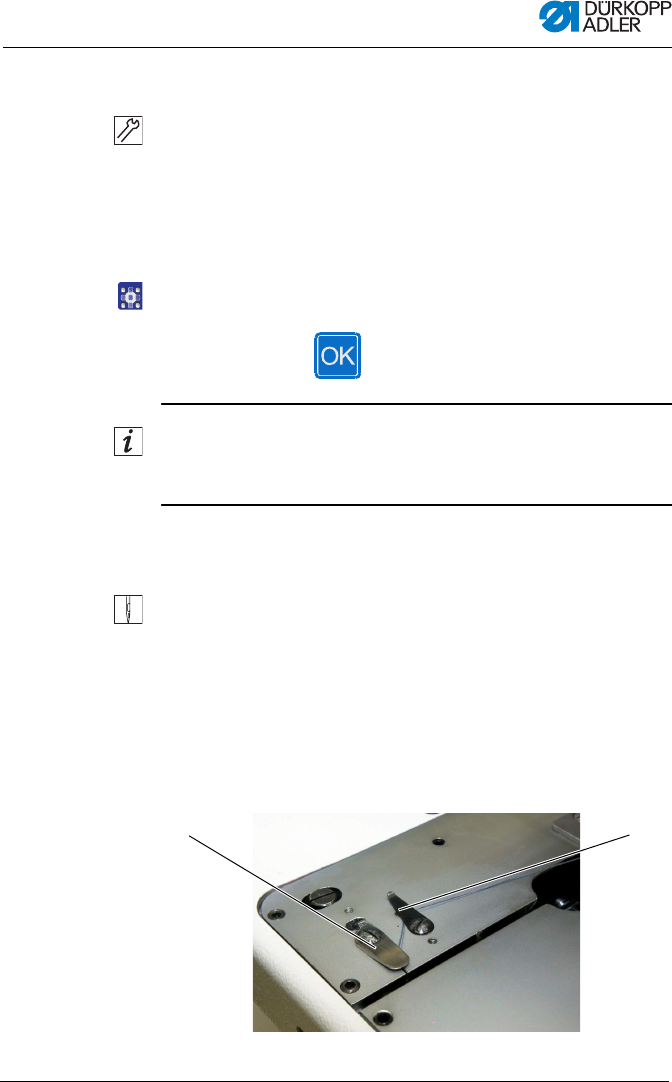

Fig. 33: Removing the sewing material for sub-class 151
(1) - Blade (2) - Thread clamp
①
②
