Operation
Operating Instructions 581 - 00.0 - 02/2015 55

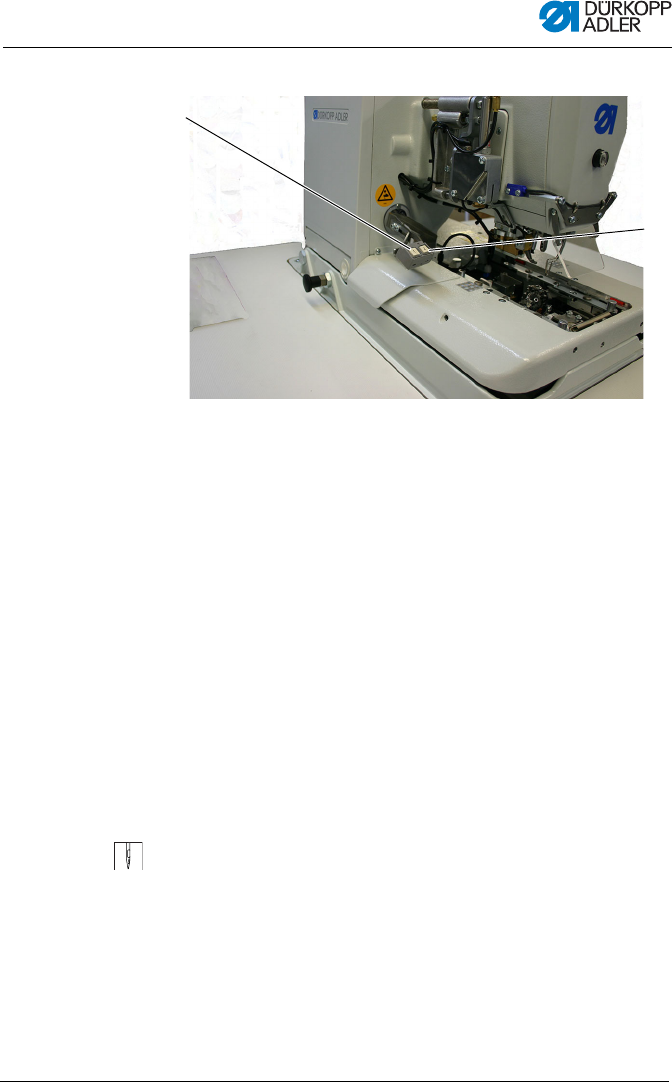

Fig. 32: Push buttons
1st setting (default):
•Push button 1: Clamps are opened or closed, respec-
tively.
•Push button 2: The sewing process starts if the clamps
are closed.
2nd setting:
•Push button 1: Clamps are opened or closed, respec-
tively.
•Push button 2: If the clamps are not lowered, they are
lowered now. The sewing process starts.
The push buttons facilitate quick switch-off during sewing.
Activate quick switch-off as follows:
Step
1. Press push button 1 or 2.
The sewing process stops.
You now have the following options:
• Interrupt the sewing process
• Continue the sewing process
(1) - Push button 1 (2) - Push button 2
②
①
