Operation
Operating Instructions 581 - 00.0 - 02/201554
Important
The blade may not project outside the down-holder!

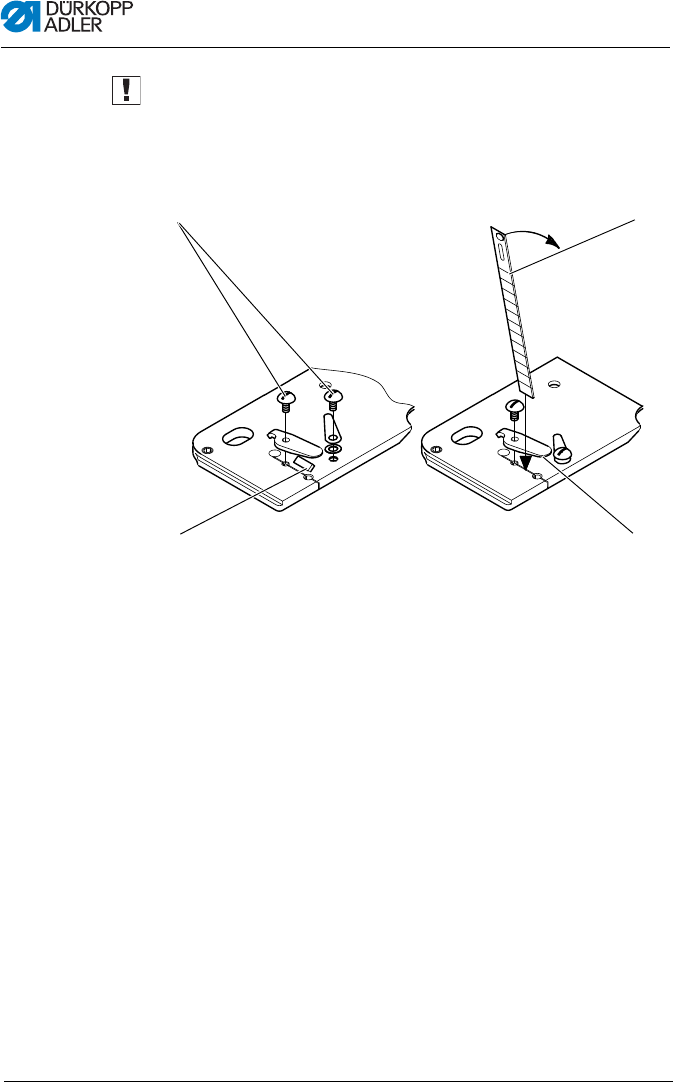

Fig. 31: Changing the blade
5.12 Sewing
The sewing process can be controlled either with the push buttons
on the machine or via the foot pedal.
5.12.1 Sewing using the push buttons
The clamps can be controlled and the sewing process started with
the push
buttons on the machine. The function differs depending
on the setting in the Service menu ( Service Instructions).
(1) - Screws
(2) - Old blade
(3) - Down-holder
(4) - New blade
②
①
③
④
