Operation
Operating Instructions 581 - 00.0 - 02/2015 53

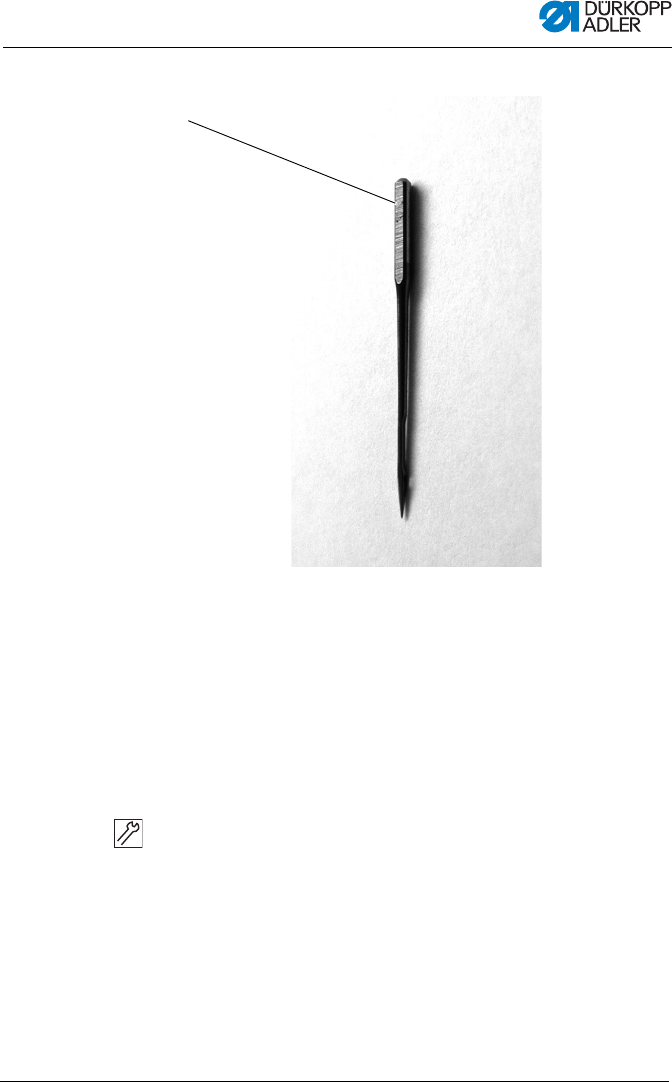

Fig. 30: Changing the needle (2)
4. Align the needle (2) such that the groove is facing forwards
and the flat part (only in needle system 579) on the needle
piston
(3) is facing to the left in the direction of the screw (1).
5. Tighten the screw (1).
5.11 Changing the blade
Step
1. Loosen the screws (1) and remove the down-holder (3).
2. Remove the old blade (2).
3. Insert the new blade (4) to the base of the groove and bend
in the direction of the arrow.
4. Re-tighten the screws (1).
5. Tighten the down-holder using the screw (1).
(3) - Needle piston
③
