Operation
Operating Instructions 581 - 00.0 - 02/201552
5.10 Changing the needle

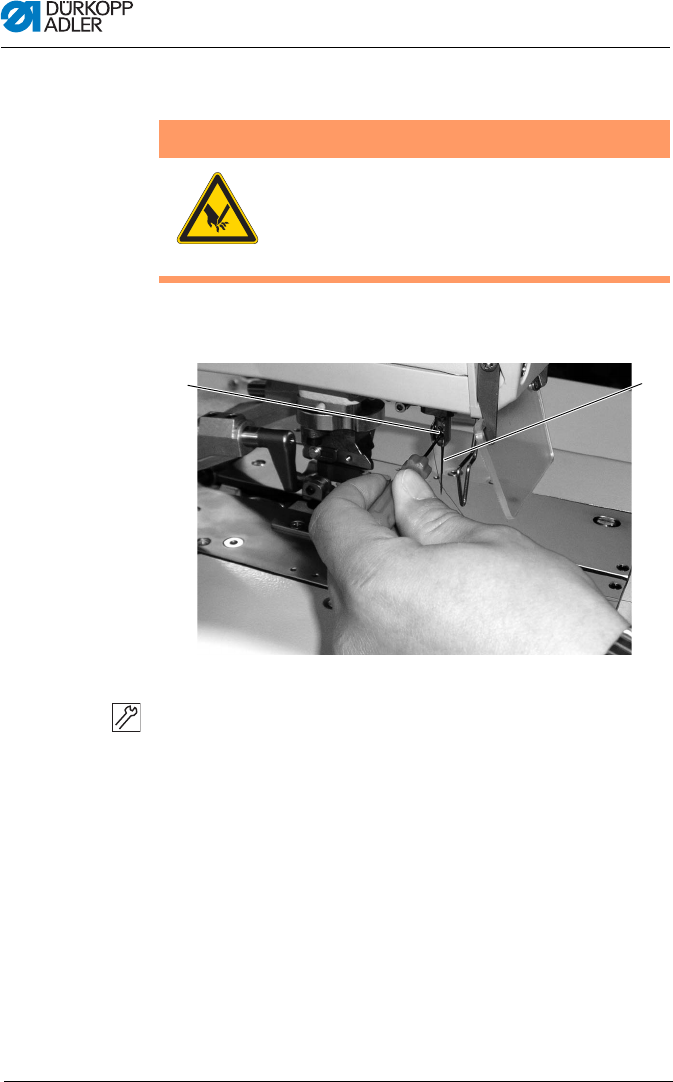

Fig. 29: Changing the needle (1)
Step
1. Loosen the screw (1) (hex key in the accessory pack).
2. Pull the needle (2) from the needle bar.
3. Push in the new needle into the bore of the needle thread
through to the end stop.
WARNING
Risk of puncture wounds from sharp objects!
Severe injuries possible.
Only change the needle when the machine
is
switched off.
(1) - Screw (2) - Needle
①
②
