Operation
Operating Instructions 581 - 00.0 - 02/2015 51
5.9.2 Setting the looper thread tension

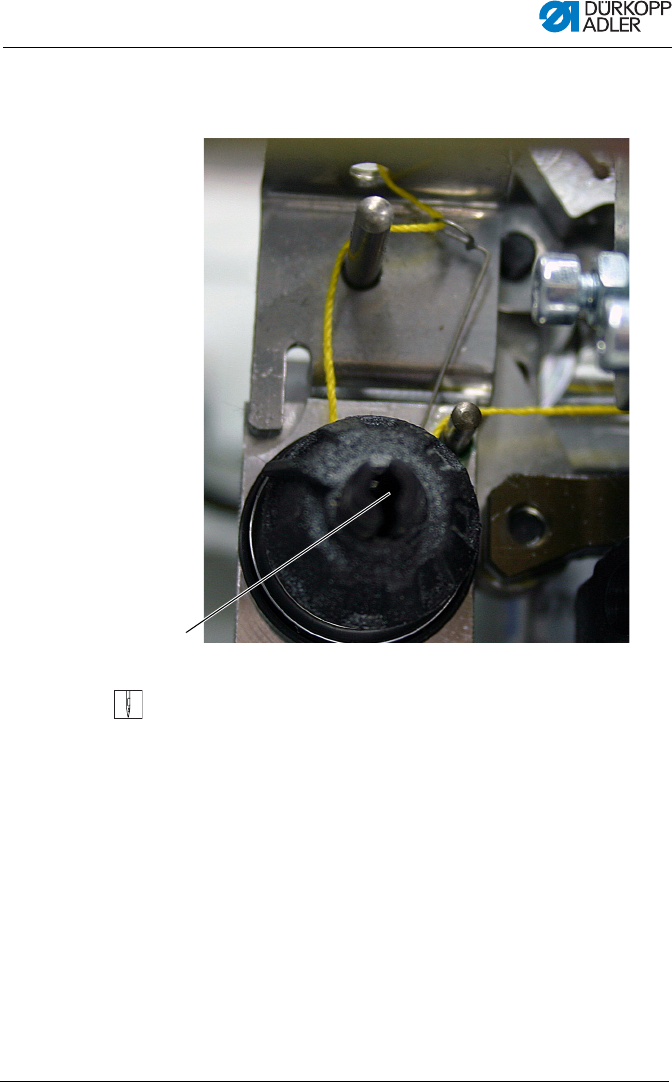

Fig. 28: Setting the looper thread tension
Step
1. Swivel the upper part of the machine up.
2. Set the looper thread tension with the tensioner element (1):
• to increase the looper thread tension, turn clockwise
• to decrease the looper thread tension, turn counterclock-
wise
3. Swivel the upper part of the machine down.
The length of the starting thread can be adjusted by changing
the
thread tension at the start.
(1) - Looper thread tensioner element
①
