Operation
Operating Instructions 581 - 00.0 - 02/201544
Fig. 19: Threading the needle thread (4)
5.7 Threading the looper thread
The machine must be in the end position, i.e. the looper turret
should face forward with the loopers.
Step
1. Remove the clamping plates ( 5.4 Removing and fitting
clamping plates, p. 37).
2. Swivel the machine up ( 5.5 Swiveling the sewing machine
up and down, p. 40).
3. Thread the looper thread (1) using the long threading wire
(accessory pack) as shown in the figures.

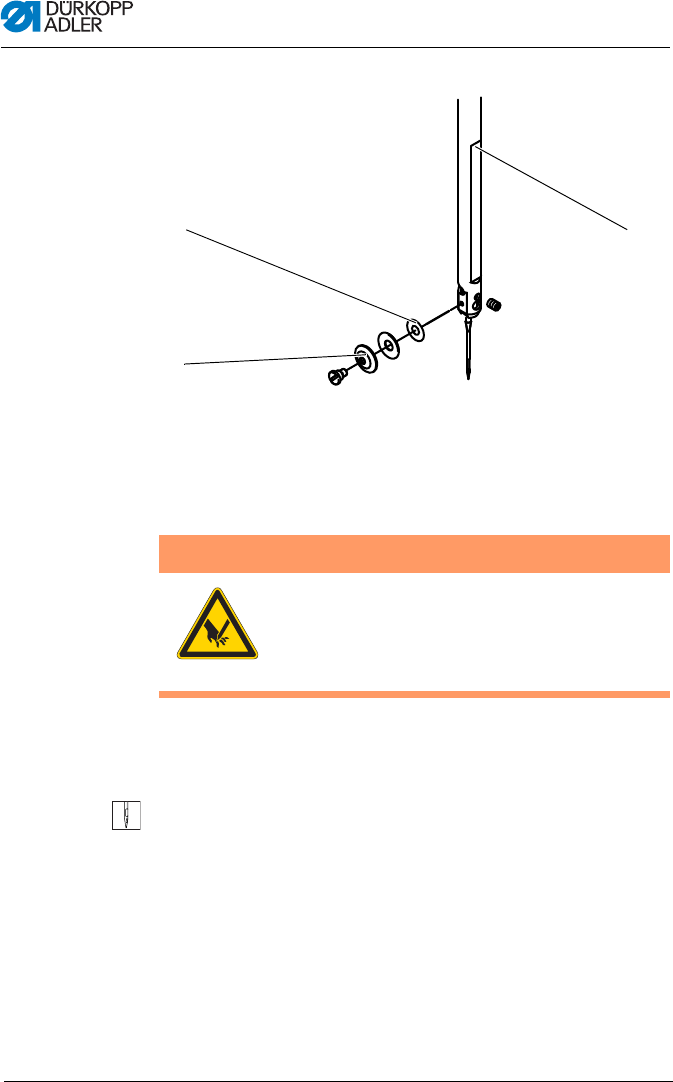

(5) - Tensioning disk
(6) - Spring
(7) - Needle bar
WARNING
Risk of puncture wounds from sharp objects!
Severe injuries possible.
Only thread the looper thread when the machine
is switched off or in threading mode.
⑦⑤
⑥
