Operation
Operating Instructions 581 - 00.0 - 02/201540
5.5 Swiveling the sewing machine up and down
Swiveling up
You must swivel the machine up for a variety of activities
(e. g. to thread the looper thread or the gimp thread).

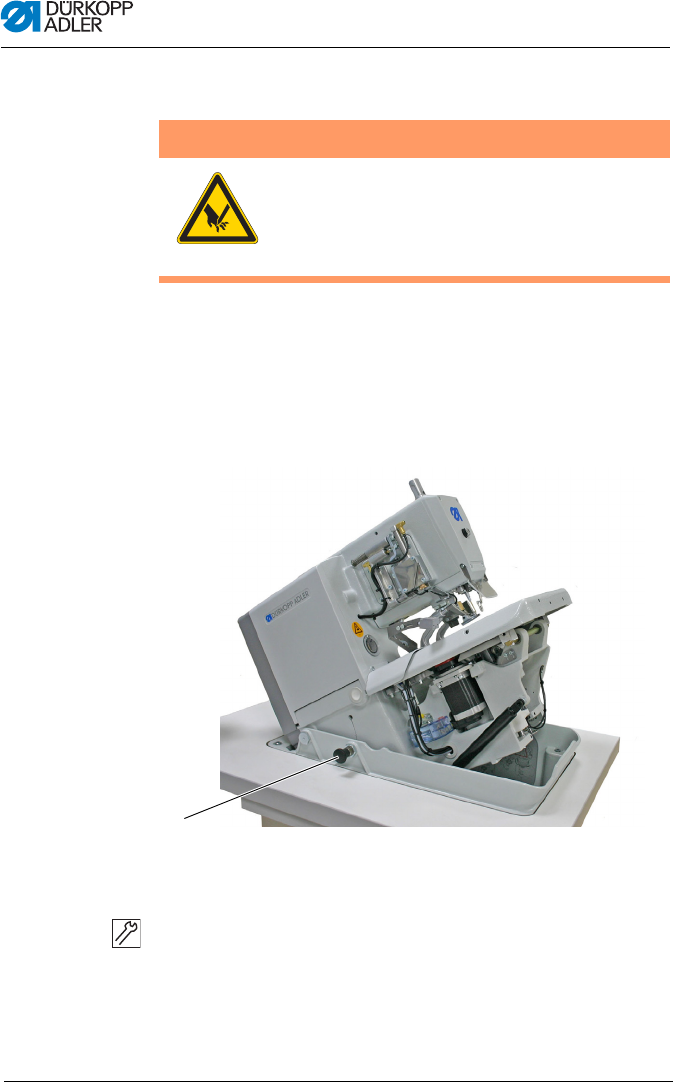

Fig. 15: Swiveling the machine up
To swivel the machine up:
Step
1. Pull out the locking bolt (1).
2. Raise the machine at the front.
3. Release the locking bolt (1) again and allow it to engage
in a hole.
WARNING
Risk of puncture wounds from sharp objects!
Severe injuries possible.
Only swivel the machine up when it is switched off
or
in threading mode.
(1) - Locking bolt
①
