Machine description
Operating Instructions 581 - 00.0 - 02/201530

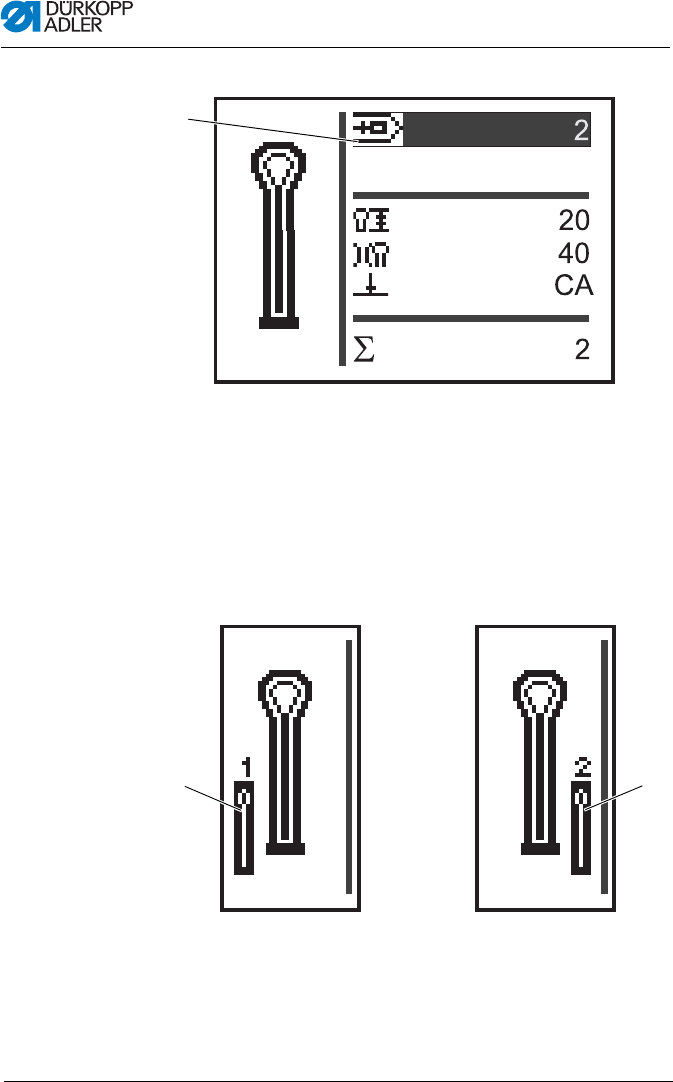

Fig. 4: Single buttonhole mode
It is possible to see which field is active by the white lettering
on a dark background.
For sub-classes 312, 321 and 341, there is also monoflex mode,
as two
blade positions are possible.
Active monoflex mode is indicated by display of a bar next to the
buttonhole shape:
Fig. 5: Monoflex mode
(8) - Buttonhole number
(1) - Blade position 1 (2) - Blade_position 2
⑧
②①
