Machine description
Operating Instructions 581 - 00.0 - 02/2015 29
4.2 Software description
There are 2 modes at user level:
• Sequential mode
• Single buttonhole mode
The main menu comprises the following fields depending
on the mode:
• Sequential number (1) or buttonhole number (8)
• Buttonhole sequence (2) or empty row
• Thread tension (7)
• Cutting length or eyelet diameter (6)
• Cutting mode (5)
• Piece counter (4)

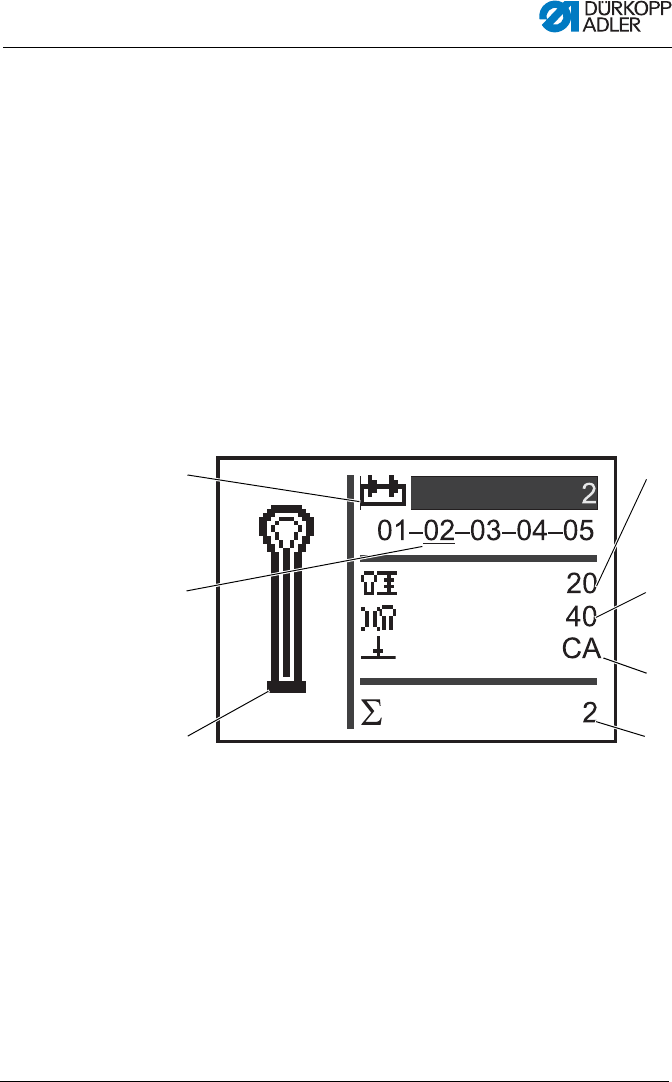

Fig. 3: Sequential mode
(1) - Sequential number
(2) - Buttonhole sequence
(3) - Buttonhole shape
(4) - Piece counter
(5) - Cutting mode
(6) - Cutting length
(7) - Thread tension
③
②
①
④
⑤
⑥
⑦
