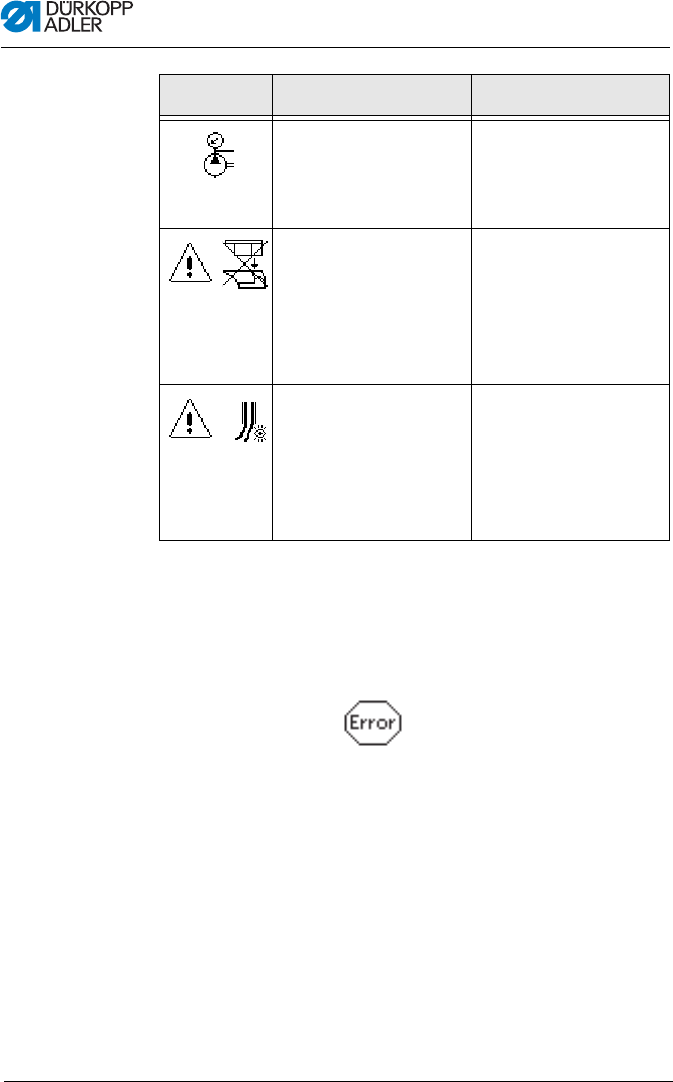

Troubleshooting
Operating Instructions 581 - 00.0 - 02/2015116
11.2 Error messages
If an error occurs, the symbol appears on the display,
followed by a four-digit number combination
(
Service Instructions).
There is no compressed
air or the pressure
is
too low.
• Switch off the machine.
• Ensure the supply of suf-
ficient compressed air.
• Switch on the machine.
A prohibited cutting combi-
nation was selected
(ONLY for multiflex).
• In the controller, check
and adjust the data for
the blade and cutting
block set.
• If necessary, install and
set an appropriate blade
and cutting block.
The sewing process stops
(ONLY for 141, 341 with
integrated and activated
gimp monitoring).
• The sewing process can
be continued with the
OK
key or the
push
buttons, or be
stopped with the
ESC
key or the
push
buttons.
Symbol Description Remedy
