Troubleshooting
Operating Instructions 581 - 00.0 - 02/2015 115
11 Troubleshooting
Should an error occur that is not described here, please contact
the manufacturer ( 5.13 Customer service, p. 58).
Do not try to repair the error yourself.

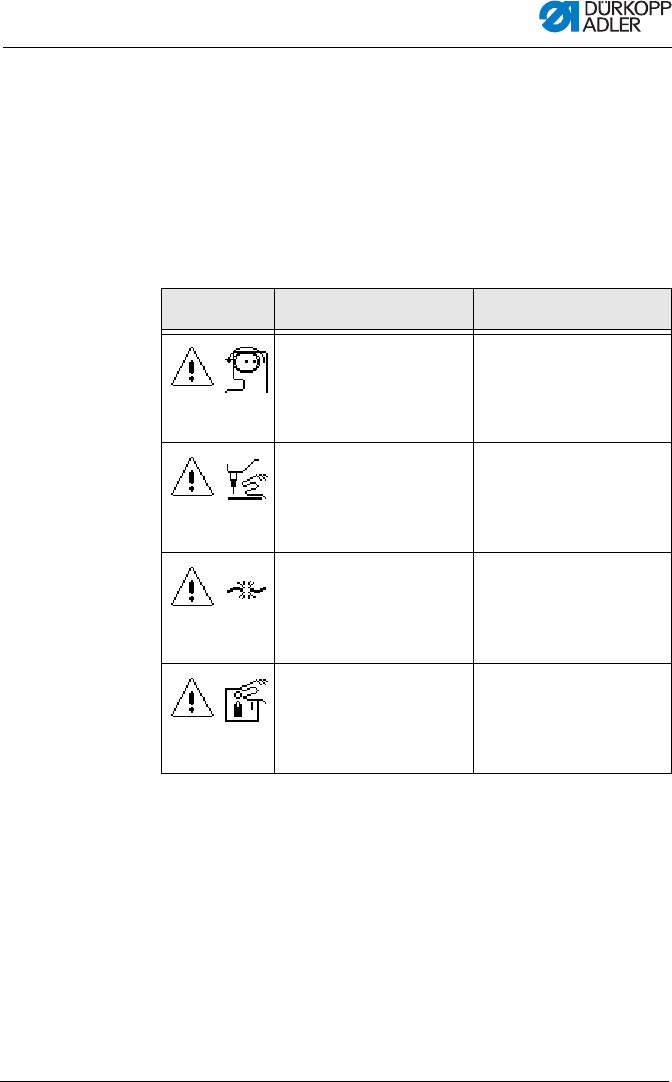

11.1 Information messages
Symbol Description Remedy
At the start of sewing, the
needle is not in the upper
home position or is on the
wrong side.
• Turn the handwheel until
the message disappears.
At the start of sewing the
machine is in the threading
position.
• Press the push button on
the head cover.
The thread breaks during
sewing.
• Press the push button on
the head cover.
At the start of sewing the
needle is in the threading
position.
• Press the push button on
the head cover.
• Switch the machine off
and on again.
