Software settings
Operating Instructions 581 - 00.0 - 02/2015110

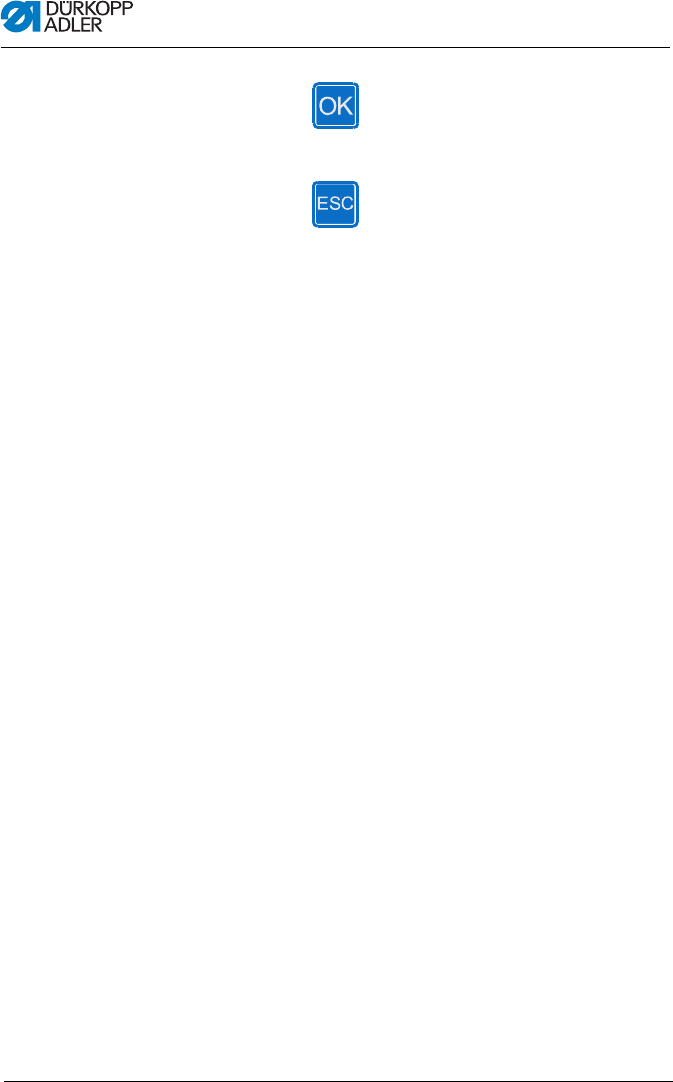

5. Press the key .
The sequential mode is switched off.
6. Press the key .
The setting mode is ended. This will take you back to the
user level.
8.4 Service mode
In service mode, there are functions that can be used for servicing
work. Service mode is password-protected in order to prevent
unintentional incorrect machine settings.
More detailed information on the contents of service mode
is provided in the Service Instructions.
