Software settings
Operating Instructions 581 - 00.0 - 02/2015 109

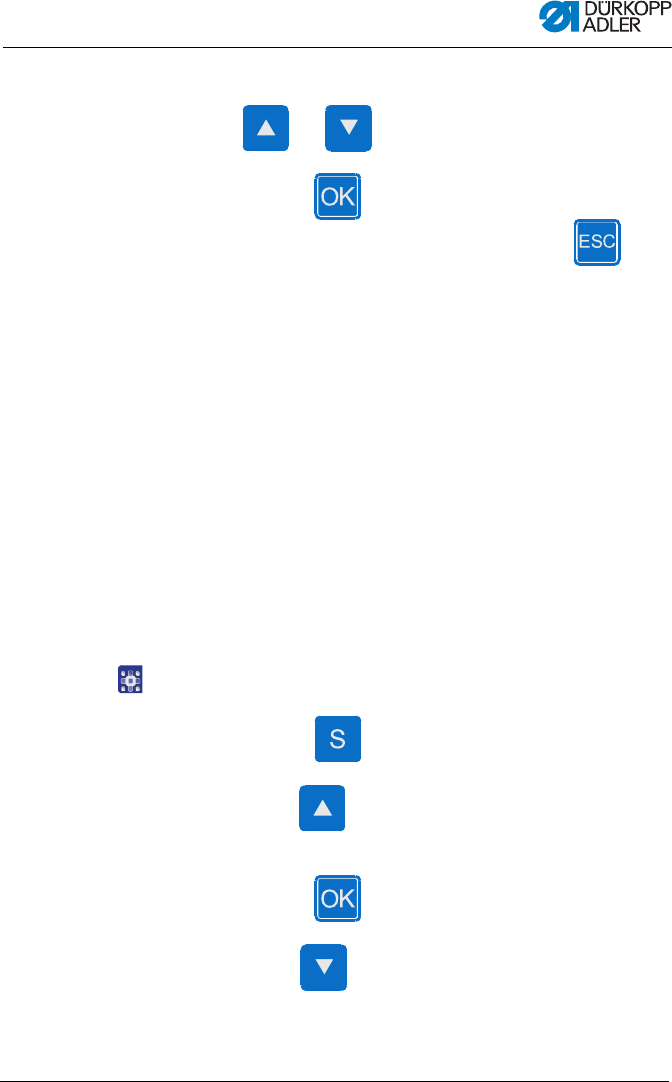

3. Select the desired buttonhole program using the
keys or .
4. Press the key .
When you want to quit setting mode, press the key .
This will take you back to the user level.
8.3.3 Inserting a buttonhole within a sequence
It is not possible to insert buttonholes individually into the se-
quence. Note the current sequence programming and change the
sequence accordingly (
8.2 Buttonhole programming, p. 99).
You can also switch off sequential mode.
8.3.4 Switching off sequential mode
If you want to use single buttonhole mode instead of sequential
mode, switch off sequential mode.
To switch off sequential mode:
Step
1. Press the key .
2. Use the key to navigate to the field Sequential num-
ber ( 8.1.3 Sequential mode, p. 92).
3. Press the key .
4. Use the key to select the sequential number 0.
