Software settings
Operating Instructions 581 - 00.0 - 02/2015 107

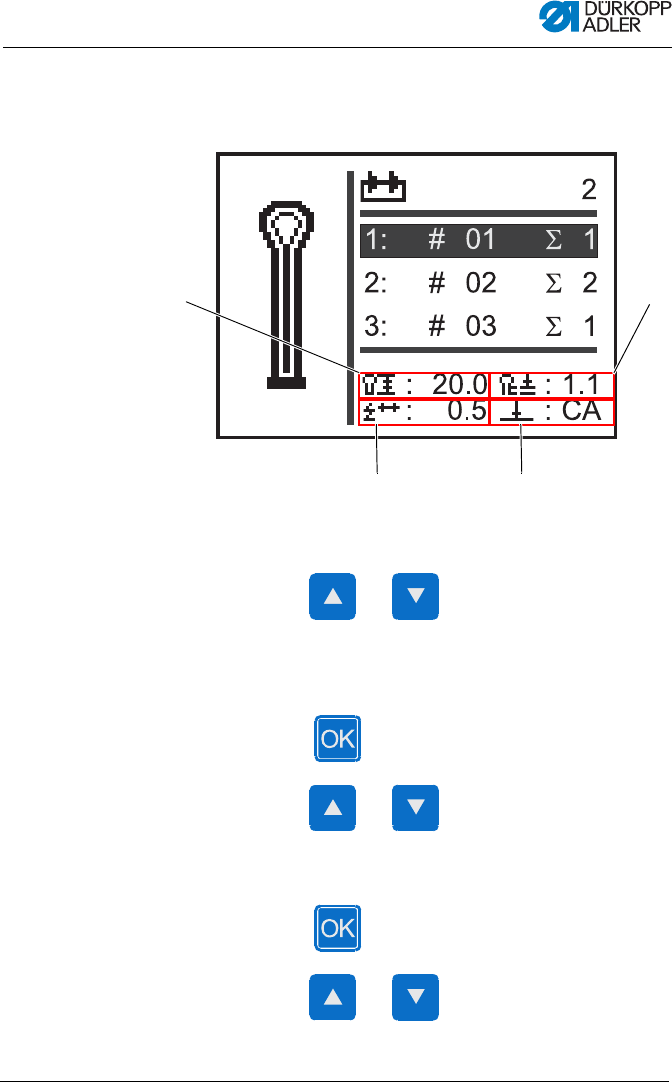

Abb. 68: Programming sequences
6. Use the keys or to select the position
desired for the buttonhole within the sequence (1st column
of
the display).
The cursor shows the current position.
7. Press the key .
8. Use the keys or to select the desired button-
hole number (2nd column of the display).
The buttonhole shape is displayed.
9. Press the key .
10. Use the keys or to set the desired number
of buttonholes (3rd column of the display).
(4) - Cutting length
(5) - Zigzag stitch adjustment
(6) - Cutting mode
(7) - Stitch length
⑥⑤
⑦④
