Software settings
Operating Instructions 581 - 00.0 - 02/2015 105

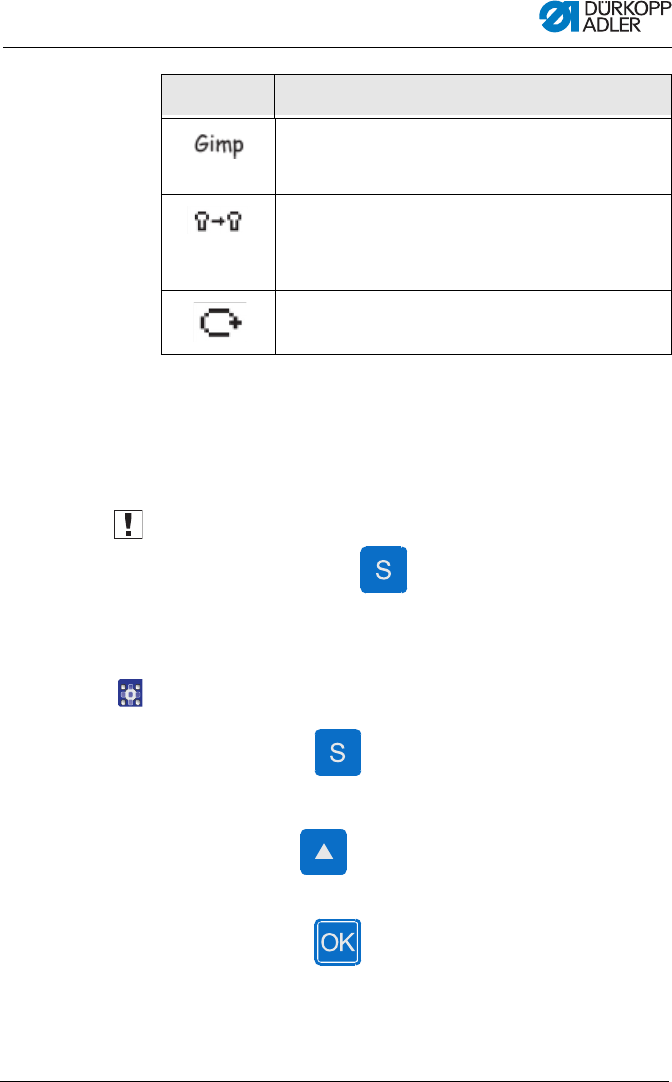

8.3 Sequence programming
The sequences are programmed on the S level.
Important
Once you press the key , you can no longer sew.
To program a sequence:
Step
1. Press the key .
The setting mode for the individual sequences is started.
2. Use the key to navigate to the Sequential number
field ( 8.1.3 Sequential mode, p. 92).
3. Press the key .
The following appears on the display:
Gimp monitoring (only for additional equipment
581-141 and 581-341): Monitoring on/off, as to
whether the gimp thread is
inserted.
Following buttonhole: Number of the buttonhole that
is sewn directly after this buttonhole without opening
the clamps. This makes it possible to carry out
double
passes.
Speed: Revolutions per minute.
Value Description
