Software settings
Operating Instructions 581 - 00.0 - 02/2015104

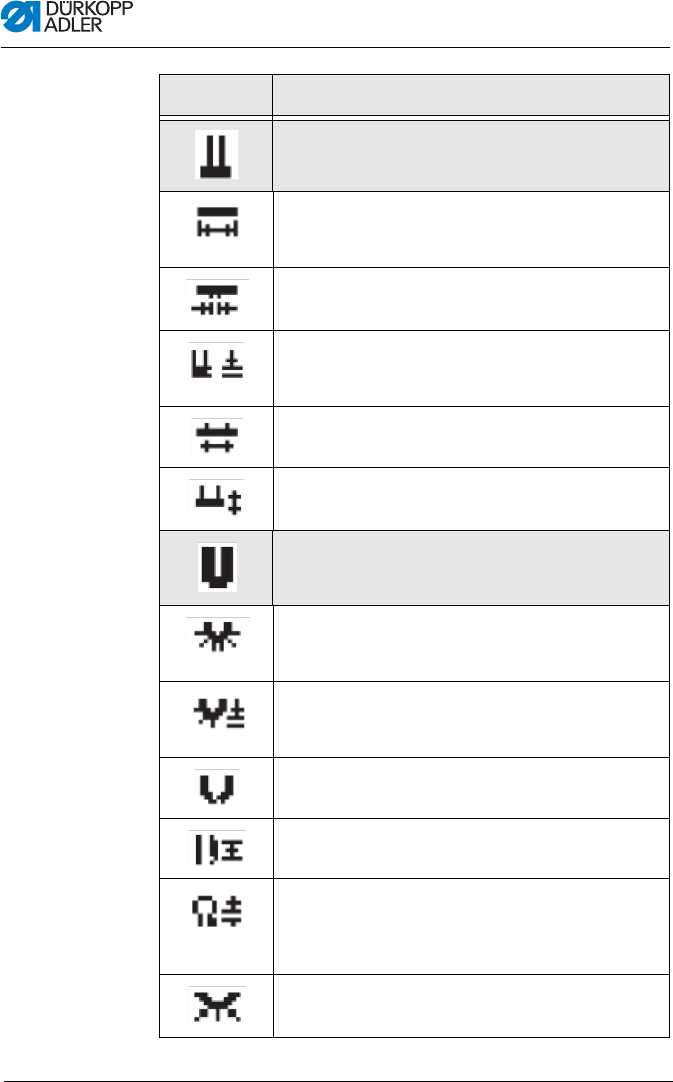

Cross tack settings
Cross tack length: Total length of the cross tack. The
setting range is automatically adjusted depending
on
the selected cutting space and the zigzag stitch.
Stitch length in the cross tack: Distance from stitch
to
stitch within the cross tack (from 0.5 mm to 2 mm).
Zigzag stitch width in the cross tack: The zigzag
stitch width can be reduced or increased in the cross
tack.
x-position of the cross tack: The entire cross tack
can be moved slightly to the left or right.
Seam length in the cross tack: Overlap of the for-
ward and return seams with the cross tack.
Round tack settings
Number of stitches in the round tack: Min. 6 to max.
12
stitches can be set in the round tack or 4 to
10
stitches in the lower semi-circle.
Zigzag stitch width in the round tack: The zigzag
stitch width applicable for the entire buttonhole can be
reduced in
the round tack.
Seam start position: The start of the seam can be
either in the round tack or within the forward seam.
Overlap in the seam: Overlap of the start and end
of
the seam.
Seam starting position within the seam: The posi-
tion of the seam start within the forward seam can be
changed from the start of the seam (100%) to the eye
(0%).
Overlap in the round tack: Overlap of the start and
end of the seam in the round tack.
Value Description
