Software settings
Operating Instructions 581 - 00.0 - 02/2015 103
Cutting length for total cut: The cutting length can
be
shorted by max. 2 mm.
Cutting position for middle cut: The position can be
specified as a percentage and increases from the eye
position (0%) to the rearmost position (100%).
Cutting correction in the x-direction: The blade posi-
tion within the buttonhole can be pushed to the left or
right.
Cutting correction in the y-direction: The blade posi-
tion within the buttonhole can be pushed forward
or
back.
Cutting pressure correction: Automatic adjustment
(4 stages) of the cutting force for the buttonhole blade
depending on the buttonhole length.
- up to 14 mm buttonhole length (eyelets) 2 stages
- from 15 mm to 30 mm buttonhole length 3 stages
- from 31 mm buttonhole length 4 stages
In this menu item, you can increase or reduce the pre-
set cutting force, depending on the buttonhole length.
Flexible cutting: Monoflex mode 581-312 or 581-321
or 581-341.
Taper bar settings
Taper bar length: The taper bar length can be
adjusted, depending on the sewing direction and but
-
tonhole length, from 2 mm to max. 36 mm.
Zigzag stitch width in the taper bar: The zigzag stitch
width applicable for the entire buttonhole can be
reduced in
the taper bar.
Overlap in the taper bar: Overlap of the forward and
return seams in the taper bar.
Height of the bartack incline: The length of the taper
in the bartack is adjustable.

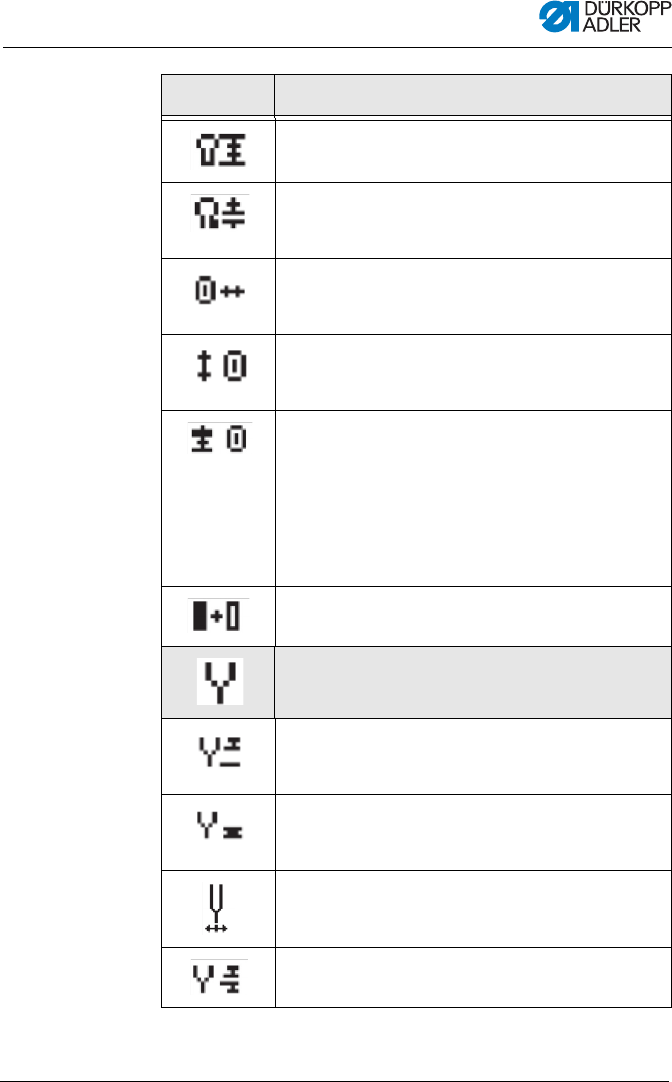

Value Description
