Software settings
Operating Instructions 581 - 00.0 - 02/2015102

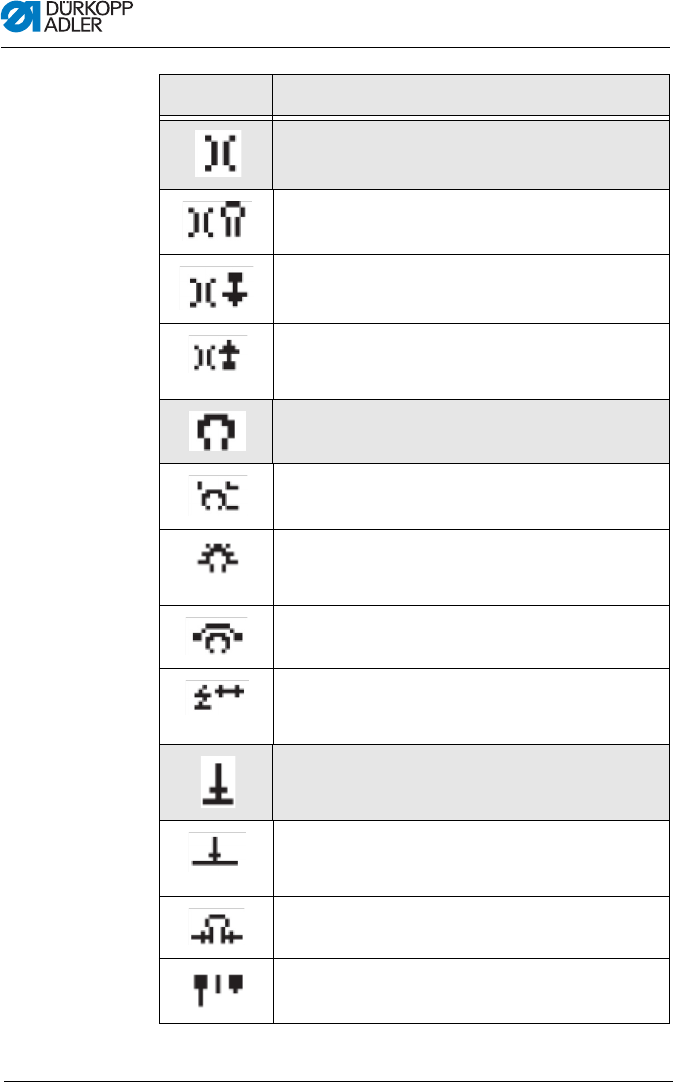

Needle thread tension
Sewing tension: Electronically regulated sewing ten-
sion within the sewing cycle.
Cutting tension: Reduced needle thread tension for
the needle thread cutter.
Sewing start tension: The length of the initial thread
inserted can be regulated by changing the thread ten
-
sion at the start of sewing.
Eye settings
Eye shape: 7 different eye shapes can
be
programmed.
Number of stitches in the eye: Min. 4 to max.
25
stitches can be set in the rounding of the
buttonhole
eye.
Eye angle: The buttonhole eye can be inclined slightly
to the left or right.
Zigzag stitch adjustment: The zigzag stitch width can
be reduced by up to 1.0
mm or increased by
up
to 0.5 mm.
Cutting settings
Cutting mode: Depending on the sewing direction, the
buttonhole can be cut either after (CA), before (CB)
or
not at all (0).
Cutting area: Distance between the two inner lips of
the forward and return seams.
Multiflex mode cutting range: 1 = Total cut,
2
= Middle cut, 3 = Eye cut or edge cut/bar cut.
Value Description
