Software settings
Operating Instructions 581 - 00.0 - 02/2015 101

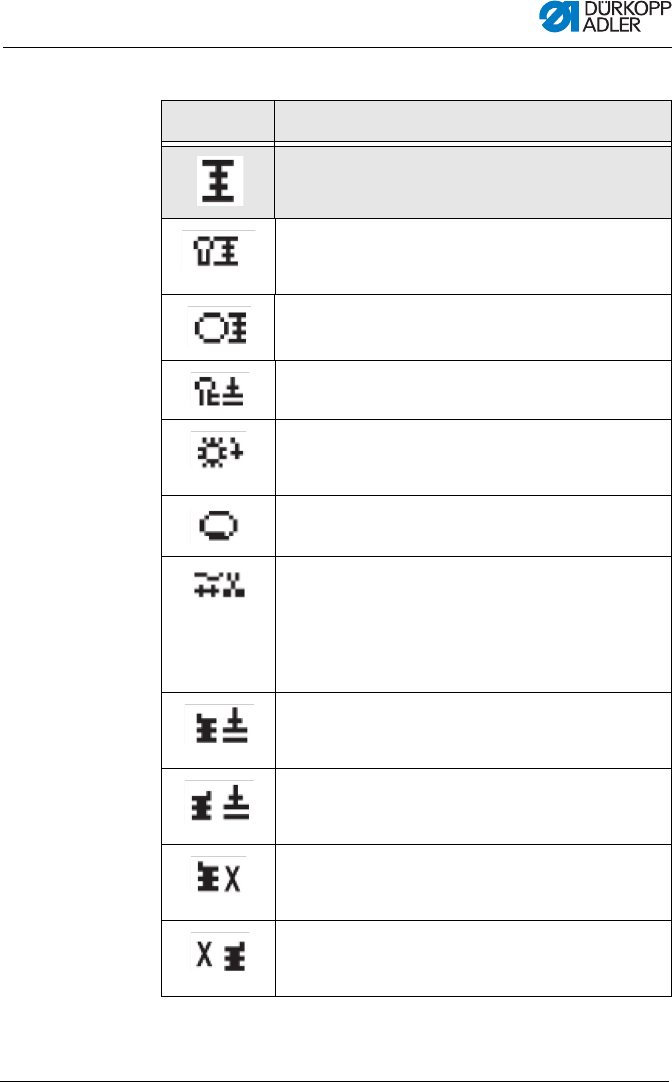

List of menu items and sub-menu items
Value Description
Length settings
Cutting length: The cutting length can be adjusted,
depending on the sewing direction, from 6
mm
to
max. 50 mm.
Eyelet diameter (only for eyelet machines).
Stitch length in the buttonhole seam: Distance from
stitch to stitch within the seam (from 0.5
mm to 2 mm).
Number of stitches in the eyelet (only for eyelet
machines): Number of evenly distributed stitches
in
the entire eyelet.
Overlap in the eyelet (only for eyelet machines):
Overlap of the start and end of the seam.
Thread cutting length: The length of the needle
thread and of the looper thread end can be changed
on
the 581-112 or 581-312 on the buttonhole under-
side.
Stitch condensing increases the seam safety at the
start and end of the seam.
Stitch length of the condensing stitches at the start
of the seam: Distance from stitch to stitch within the
condensing at the start of the seam.
Stitch length of the condensing stitches at the end
of the seam: Distance from stitch to stitch within the
condensing at the end of the seam.
Number of condensing stitches at the start of the
seam: Number of stitches within the condensing at the
start of the seam.
Number of condensing stitches at the end of the
seam: Number of stitches within the condensing at the
start of the seam.
