Software settings
Operating Instructions 581 - 00.0 - 02/201598
You can reset the piece counter.
If you do not wish to reset the piece counter, you can now
start sewing.
8.1.7 Resetting the piece counter
The machine is equipped with a piece counter that counts the
number of sewn buttonholes. After the
Σ symbol (1) the current
value (e.g. 2) is displayed. The piece counter value is retained
after the machine is switched off.
The piece counter counts up to a maximum of 9999 buttonholes.
When this value is exceeded, the count starts again at 0.

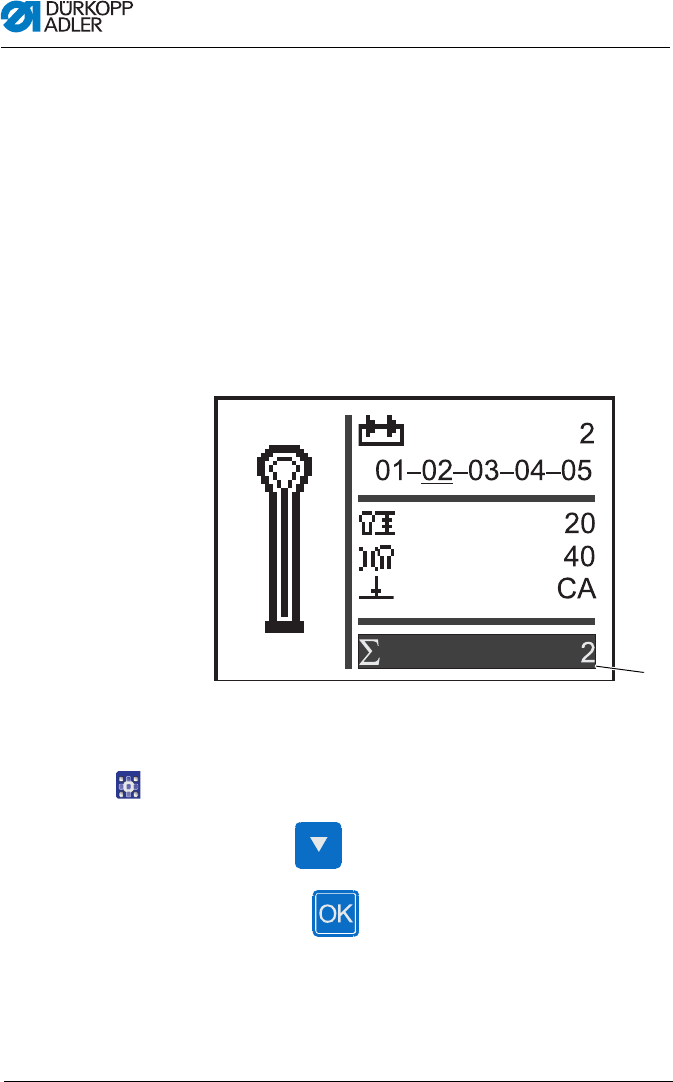

Abb. 66: Resetting the piece counter in sequential mode
To reset the piece counter:
Step
1. Use the key to navigate to the field Piece counter (1).
2. Press the key .
The menu bar changes.
(1) - Piece counter field
①
