NOTE: Eight Channel LEDs are located under the sliding control

panel door. If all 8 green LEDs are flashing, this indicates that your

power source is low.

Complete these steps:

1 Connect the transmitter antenna to the SMA connector on the top of the

Palladium unit.

2 If you plan to use audio, connect one or two microphones to the Audio 1

and/or Audio 2 LEMO connectors.

3 Connect power and video input via the Multi I/O cable to the 6-pin

Hirose connector:

a Attach your camera video input (75 ohm composite video source in

PAL or NTSC) to the Multi I/O cable BNC connector.

b Apply the necessary power to your camera and turn ON.

c Attach a 12 VDC power source to the Multi I/O cable via the Molex

connector. The power source must be capable of supplying a minimum

of 30 Watts for the PdTx-1000 and 36 Watts for the PdTx-2000.

QUICK START

Thermal Issues

Higher power Palladium

1 and 2 Watt Transmitters

feature mounting tabs for

convenient installation and

heat dissipation. Proper

heat sink mounting is

required. Operating without

proper heat sinking would

cause overheating and

damage to electronic

components.

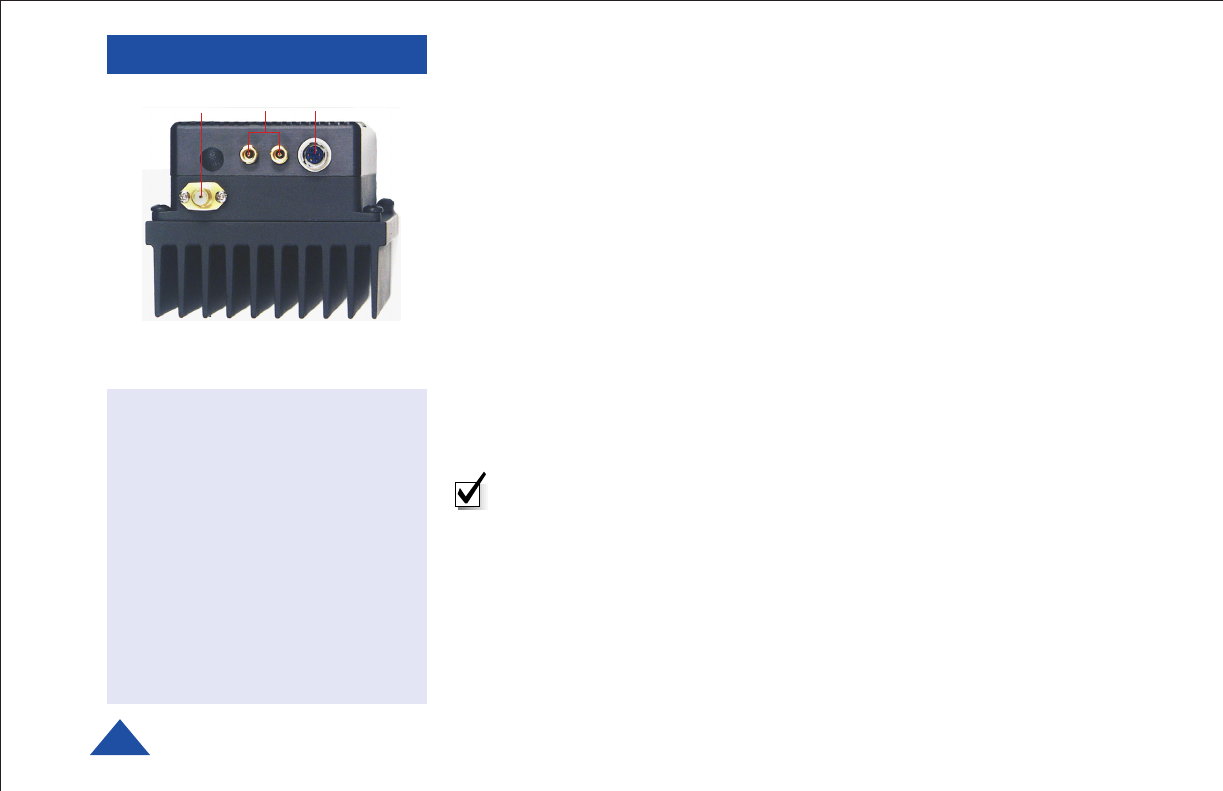

Palladium Transmitter, Top View
