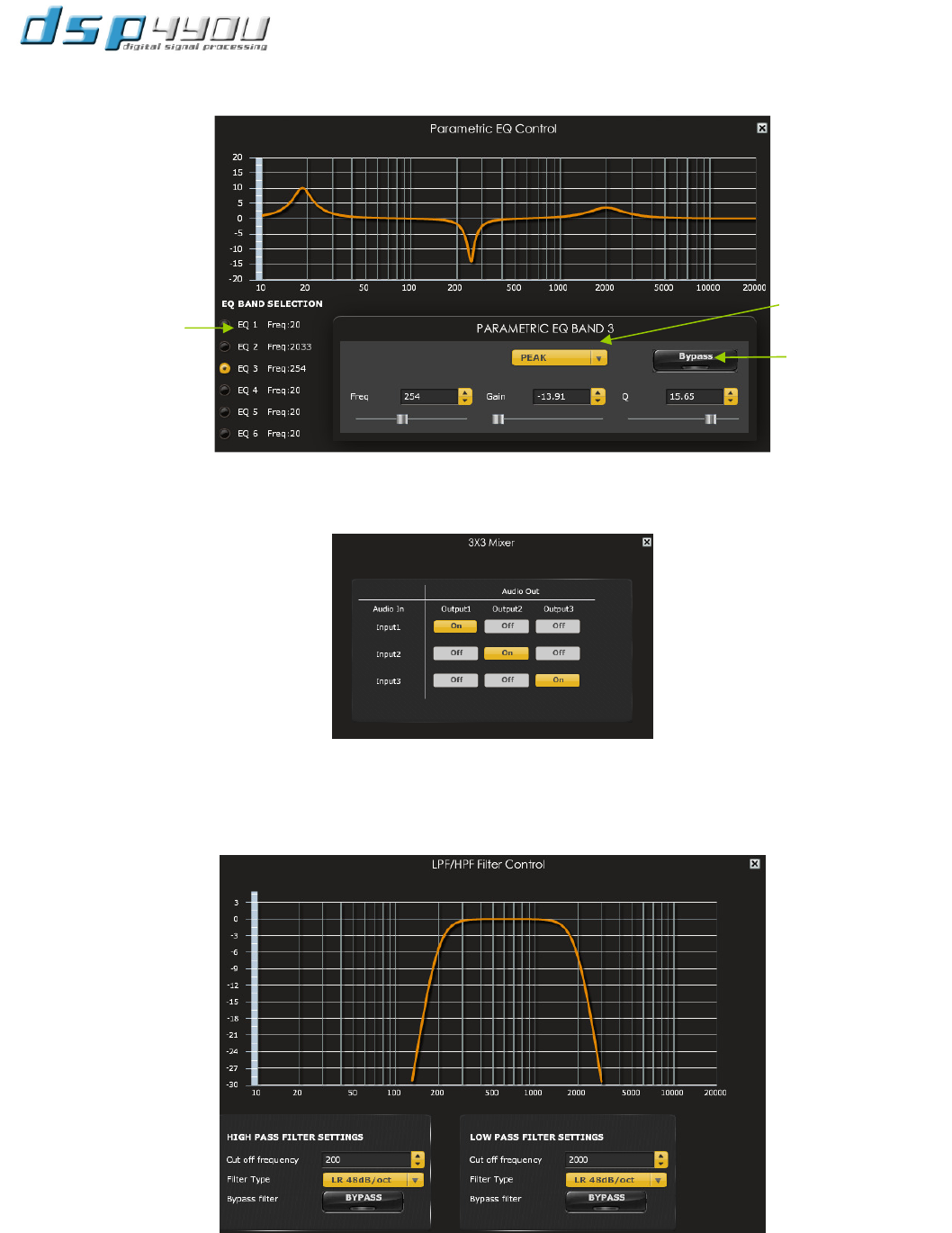

At any times during the tuning, one can easily mouse over the curve to provide a real time reading of the
equalization at a certain point.
4.2.3.6 Matrix switcher
At the center of the signal path is a 3x3 matrix switcher allowing to route the signal as required.
4.2.3.7 Bandpass filter
At the output of the matrix mixer, a bandpass filter made up of 1 x Low pass filter and 1 x high pass filter provides all
the flexibility required for multi-way speaker processing applications.
Band selection by radio
button
Select from Peak, High
Shelf, Low Shelf filters
Select from Peak, High
Shelf, Low Shelf filters
