Connecting a video device
If your video device has more than one output, select the highest quality
one. DVI video has the best quality, followed by Component video, S-video,
and then composite video.

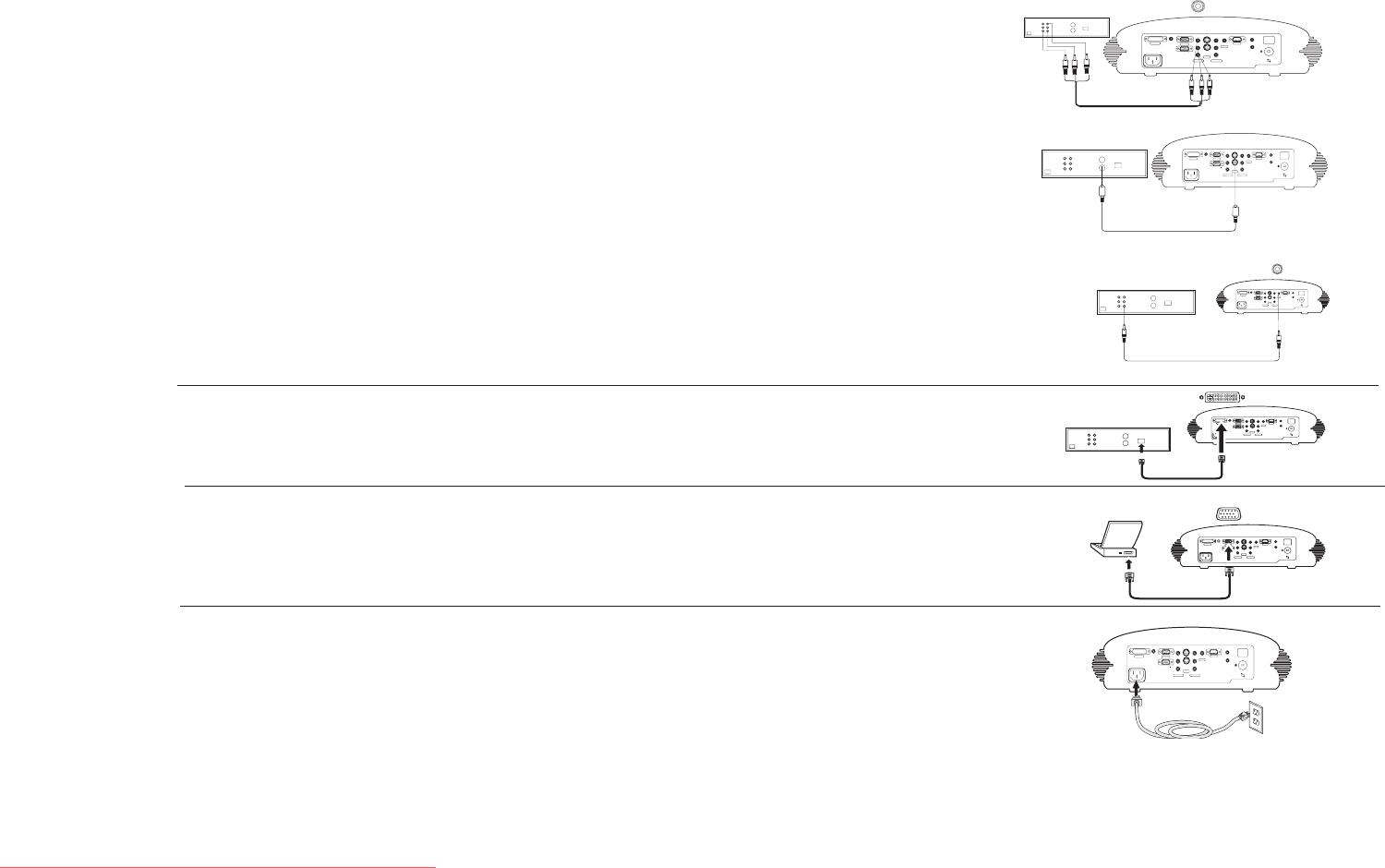

If the video device uses component cable connectors, plug the cable’s green
connectors into the green component-out connector on the video device and
into the green component connector (labeled “ Y ”) on the projector. Plug the
component cable’s blue connectors into the blue component-out connector
on the video device and into the blue component connector (labeled “ Pb ”)
on the projector. Plug the component cable’s red connectors into the red
component-out connector on the video device and into the red component
connector (labeled “ Pr ”) on the projector.
If the video device uses a round, four-prong S-video connector, plug an
S-video cable into the S-video connector on the video device and into the S-
video connector on the projector.
If the video device uses a yellow composite video connector, plug a com-
posite video cable’s yellow connector into the video-out connector on the
video device. Plug the other yellow connector into the yellow Video con-
nector on the projector.
If the video device uses a DVI connector, plug an M1-D cable into the video-
out connector on the video device. Plug the other connector into the M1-DA
connector on the projector.
If the video device uses a VESA connector, plug a VESA cable into the
video-out connector on the video device. Plug the other connector into the
VESA connector on the projector.
Connecting the power cable
Connect the power cable to the connector on the back of the projector and to
your electrical outlet. The Power LED on the keypad turns solid green.
NOTE : Always use the power cable that shipped with the projector.
