User`s guide

VigorSwitch G2080 User’s Guide
93
2
2
.
.
1
1
6
6
.
.
1
1
8
8
0
0
2
2
.
.
1
1
X
X
S
S
t
t
a
a
t
t
e
e
S
S
e
e
t
t
t
t
i
i
n
n
g
g

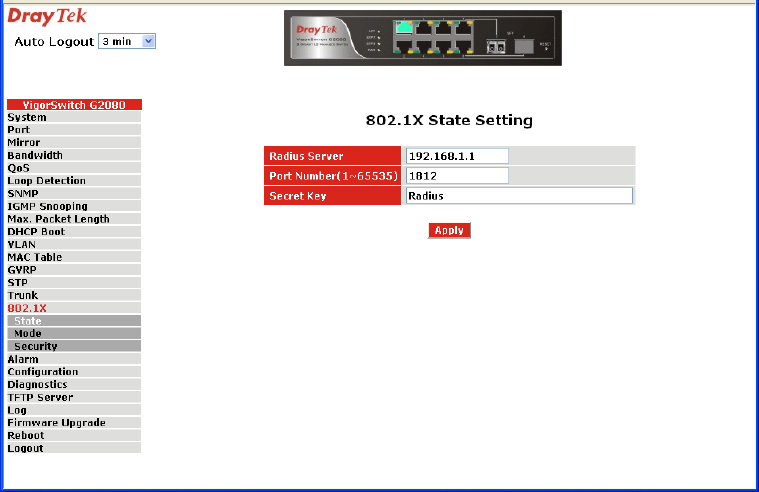

Function name:
802.1X State Setting
Function description:
This function is used to configure the global parameters for RADIUS authentication in
802.1X port security application.
Parameter description:
Radius Server: RADIUS server IP address for authentication.
Default: 192.168.1.1
Port Number: The port number to communicate with RADIUS server for
the authentication service. The valid value ranges 1-65535.
Default port number is 1812.
Secret Key: The secret key between authentication server and
authenticator. It is a string with the length 1 – 31 characters.
The character string may contain upper case, lower case and
0-9. It is character sense. It is not allowed for putting a blank
between any two characters.
Default: Radius
