Vigor2750 Series User’s Guide
159

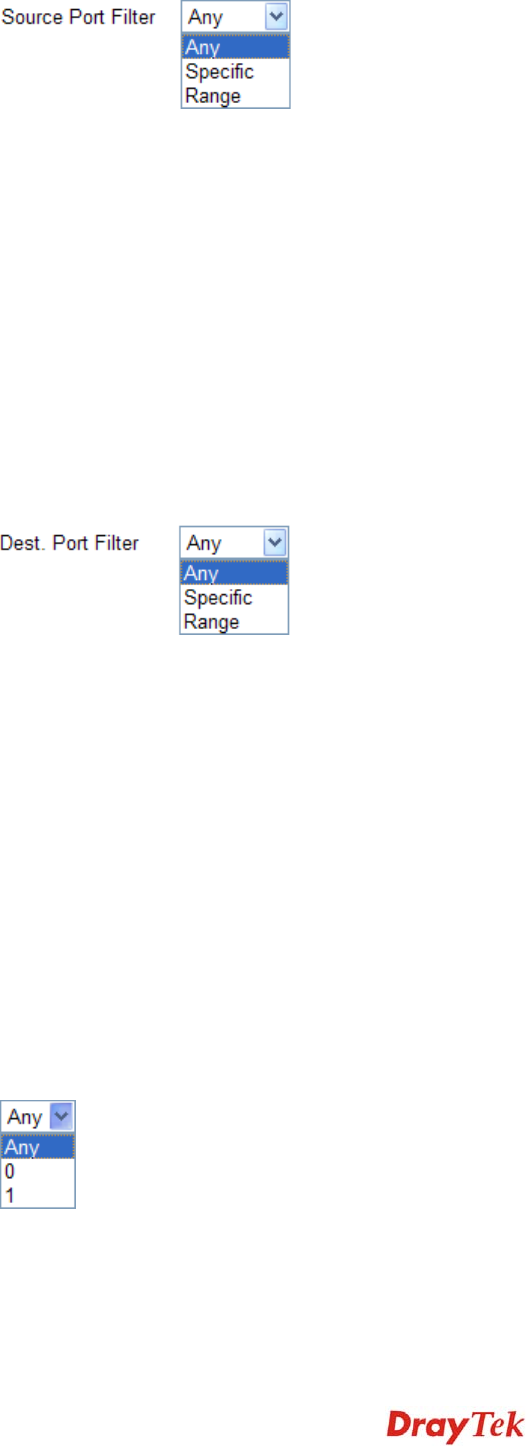

Source Port Filter Specify the TCP port source filter for this ACE.
Any: No TCP source filter is specified.
Specific: If you want to filter a specific TCP source filter
with this ACE, you can enter a specific TCP source value.
A field for entering a TCP source value appears.
Range: If you want to filter a specific TCP source range
filter with this ACE, you can enter a specific TCP source
range value. A field for entering a TCP source port range
appears.
Source Port No. Type the value if you choose Specific as the Source Port
Filter. The allowed range is 0 to 65535. A frame meeting
this ACE matches this TCP source value.
Source Port Range Type the value if you choose Range as the Source Port
Filter. The allowed range is 0 to 65535. A frame meeting
this ACE matches this TCP source value.
Dest. Port Filter Specify the TCP port destination filter for this ACE.
Any: No TCP destination filter is specified.
Specific: If you want to filter a specific TCP destination
filter with this ACE, you can enter a specific TCP
destination value. A field for entering a TCP destination
value appears.
Range: If you want to filter a specific TCP destination
range filter with this ACE, you can enter a specific TCP
destination range value. A field for entering a TCP
destination port range appears.
Dest. Port No. Type the value if you choose Specific as the Dest. Port
filter. The allowed range is 0 to 65535. A frame meeting
this ACE matches this TCP source value.
Dest. Port Range Type the value if you choose Range as the Dest. Port filter.
The allowed range is 0 to 65535. A frame meeting this
ACE matches this TCP source value.
TCP FIN Specify the TCP "No more data from sender" (FIN) value
for this ACE.
0: TCP frames where the FIN field is set must not be able
to match this entry.
1: TCP frames where the FIN field is set must be able to
match this entry.
Any: Any value is allowed.
