Vigor2750 Series User’s Guide
145

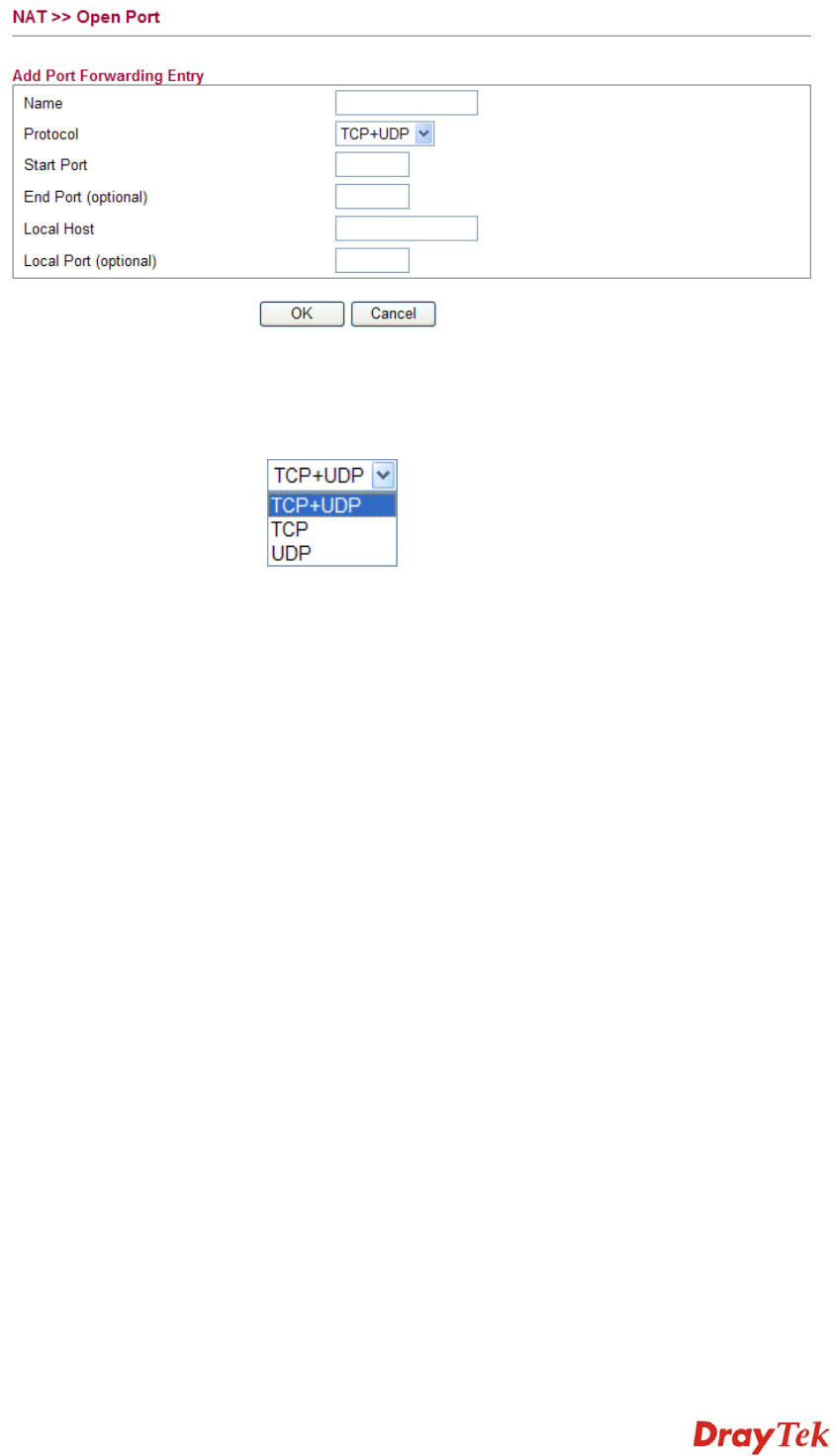

Name Specify the name for the defined network service.
Protocol Specify the transport layer protocol. It could be TCP, UDP and
TCP+UDP.
Start Port Specify the starting port number of the service offered by the
local host.
End Port (optional) Specify the ending port number of the service offered by the
local host.
Local Host Enter the private IP address of the local host.
Local Port (optional) If it is configured, the forwarded traffic is mapped to this port
on the local host.
