Virtual LAN function provides you a very convenient way to manage hosts by grouping them
based on the physical port. You can also manage the in/out rate of each port. Go to LAN page
and select VLAN. The following page will appear. VLAN function is enabled in default.
Note: For the VALN feature in LAN is port-based, the available numbers for PVLAN ID
can be 1-4.

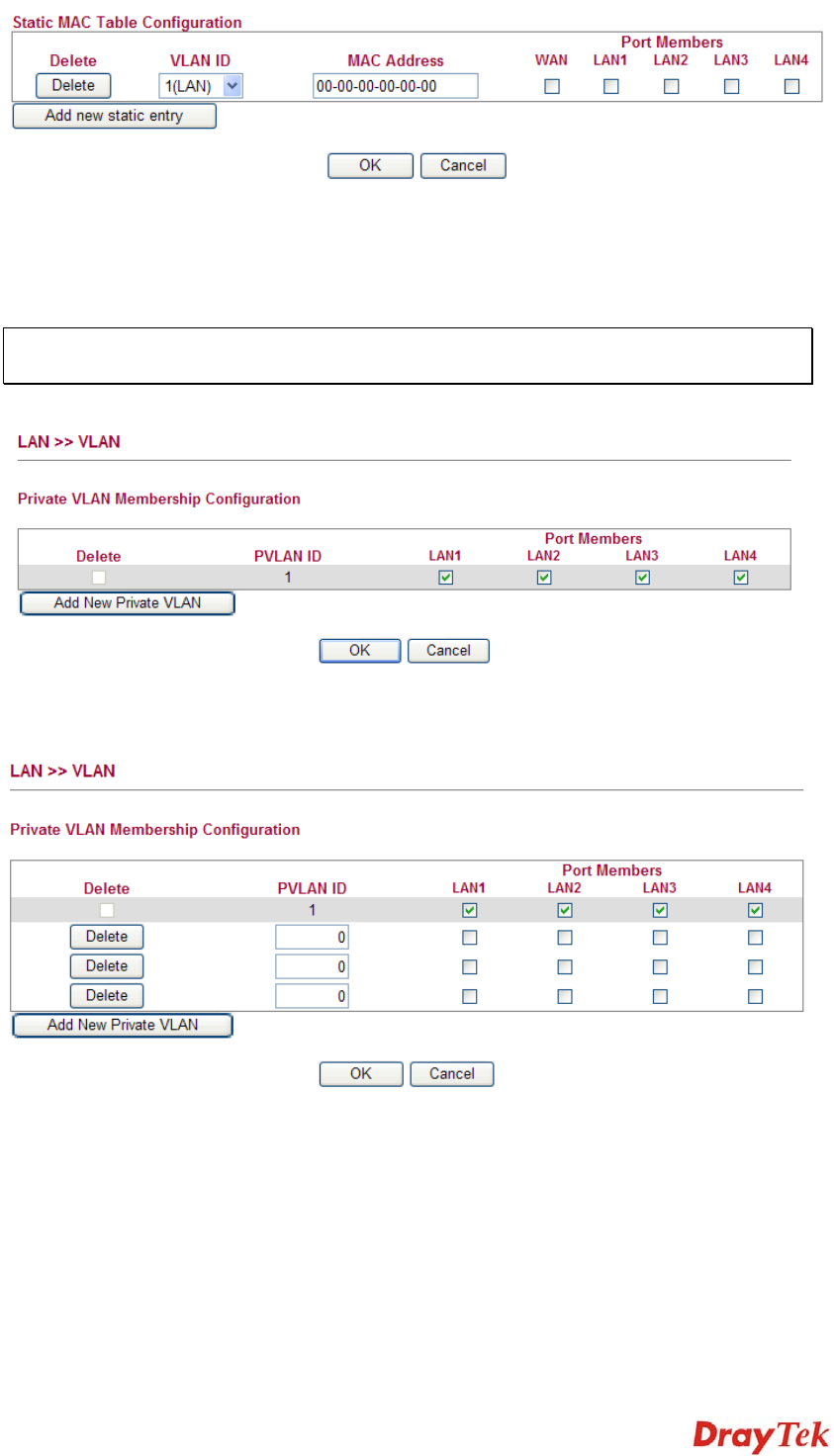

Add New Private VLAN Click this button to add a new private VLAN. The router allows
you to add up to 4 VLAN.
To add or remove a VLAN, please refer to the following example.
1. VLAN 1 is consisted of hosts linked to P1 ~ P4.
2. After checking the box to enable VLAN function, you will check the table according to
the needs as shown below.
