5-24 ENGINE TOP END
Camshaft
•

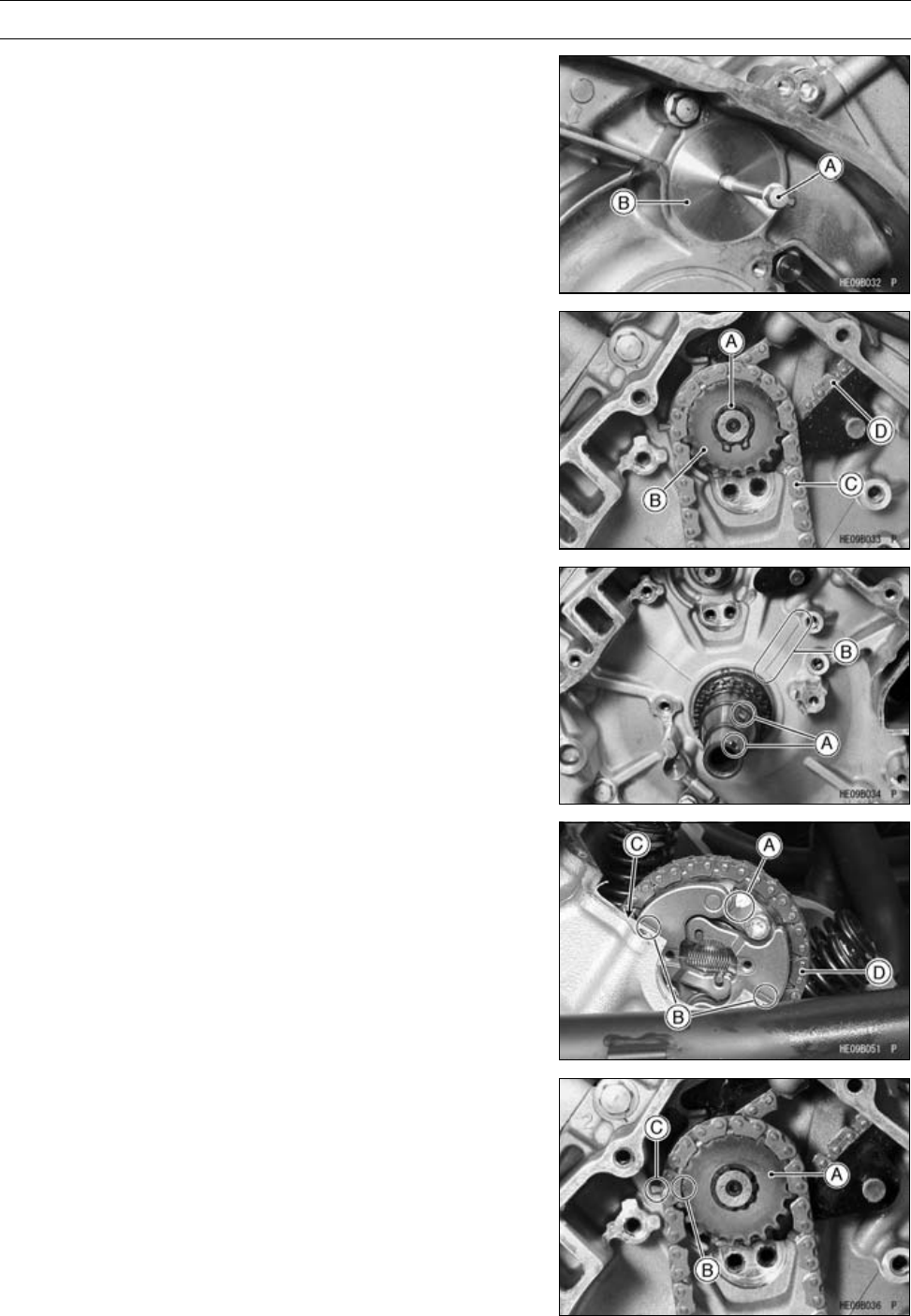

Remove (right side view):
Torque Converter C over (see Torque Converter Cover
Removal in the Converter System chapter)
•
Using a M6 bolt [A], pull out the cover [B].
•
Remove (left side view):
Circlip [A]
Special Tool - Outside Circlip Pliers: 57001-144
•
Remove:
Intermediate Shaft Sprocket [B]
Intermediate Shaft Drive Chain [C]
Rear Camshaft Chain [D]
Front Camshaft Chain (right side)
Camshaft Chain Installation
Rear Camshaft Chain
•
Align the key grooves [A] on the crankshaft with the em-
bossed line [B] on the crankcase (left side view).
•
Face the arrow [A] of the rear camshaft s procket upward.
•
Align the marks [B] on the weights with the rear cylinder
head upper surface [C].
•
Place the rear camshaft chain [D] onto the rear camshaft
sprocket.
•
Engage the camshaft and intermediate shaft chains on
the intermediate shaft sprocket [A] and insert the inter-
mediate shaft (left side view).
•
Align the punch marks [B] on the sprocket with the em-
bossed mark [C] on the crankcase.
