Setting Up the 708-DS / 709-DS 3
708-DS / 709-DS Operator’s Manual 43

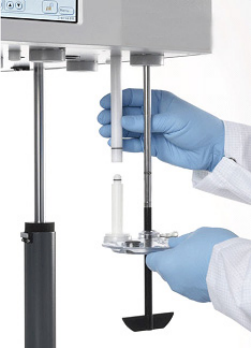

Figure 21 Accessory Installation
Setting Basket (Apparatus 1) Heights
1 Ensure the drive unit is fully raised and the basket shafts are pushed
up sufficiently.
2 Clip the basket height gauge provided onto the bottom of the basket
shaft.
3 Lower the drive unit to its operating position (until it stops).
4 With the shaft locking collar loosened, carefully lower the shaft until
the bottom of the basket height gauge rests against the bottom of the
vessel.
5 Ensure the shaft locking collar is flush against the top of the spindle
assembly by rotating each shaft until resistance is met.
6 Tighten the shaft locking collar securely.
