G420F(FE) Service Manual Chapter 3. Engine Mechanical System 80
INSPECTION

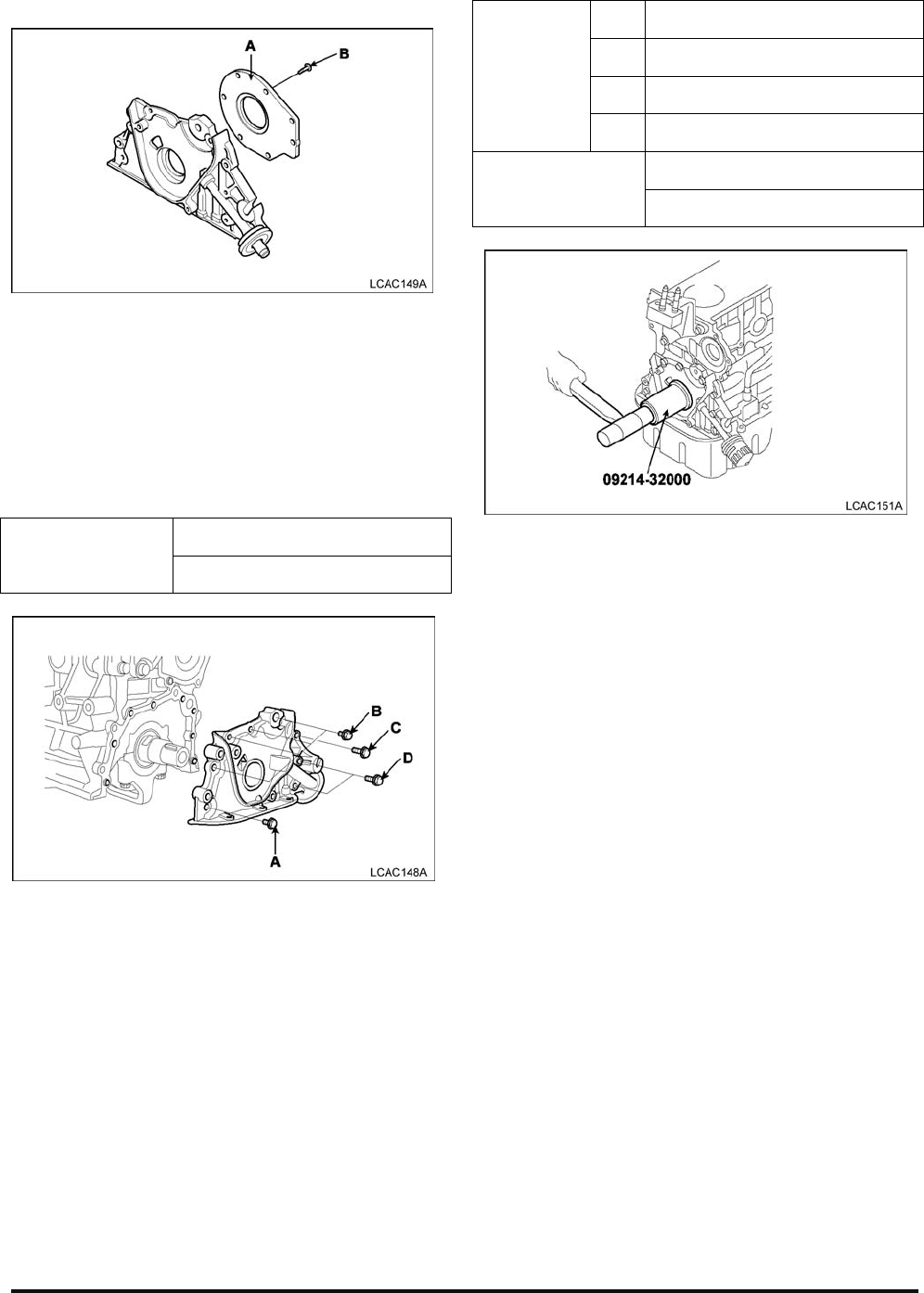

1. Install oil pump.
1) Place the inner and outer rotors into front case
with the marks facing the oil pump cover side.
2) Install the oil pump cover (A) to front case with
the 7screws (B).
5.9~8.8N.m
Tightening torque
(0.6~0.9kgf.m, 4.3~6.5lb-ft)
2. Check that the oil pump turns freely.
3. Install the oil pump on the cylinder block.
Place a new front case gasket on the cylinder
block. Apply engine oil to the lip of the oil pump
seal. Then, install the oil pump onto the crankshaft.
When the pump is in place, clean any excess
grease off the crankshaft and check that the oil
seal lip is not distorted.
A 25mm(0.98in)
B 20mm(0.787in)
C 38mm(1.496in)
Body length
D 45mm(7.771in)
19.6~26.5N.m
Tightening torque
(2.0~2.7kgf.m, 14.5~19.5lb-ft)
4. Apply a light coat of oil to seal lip.
5. Using the SST(09214-32000), install the oil seal.
6. Install the oil screen.
7. Install the oil pan.
NOTE: Clean the oil pan gasket mating surfaces.
