G420F(FE) Service Manual Chapter 3. Engine Mechanical System 43

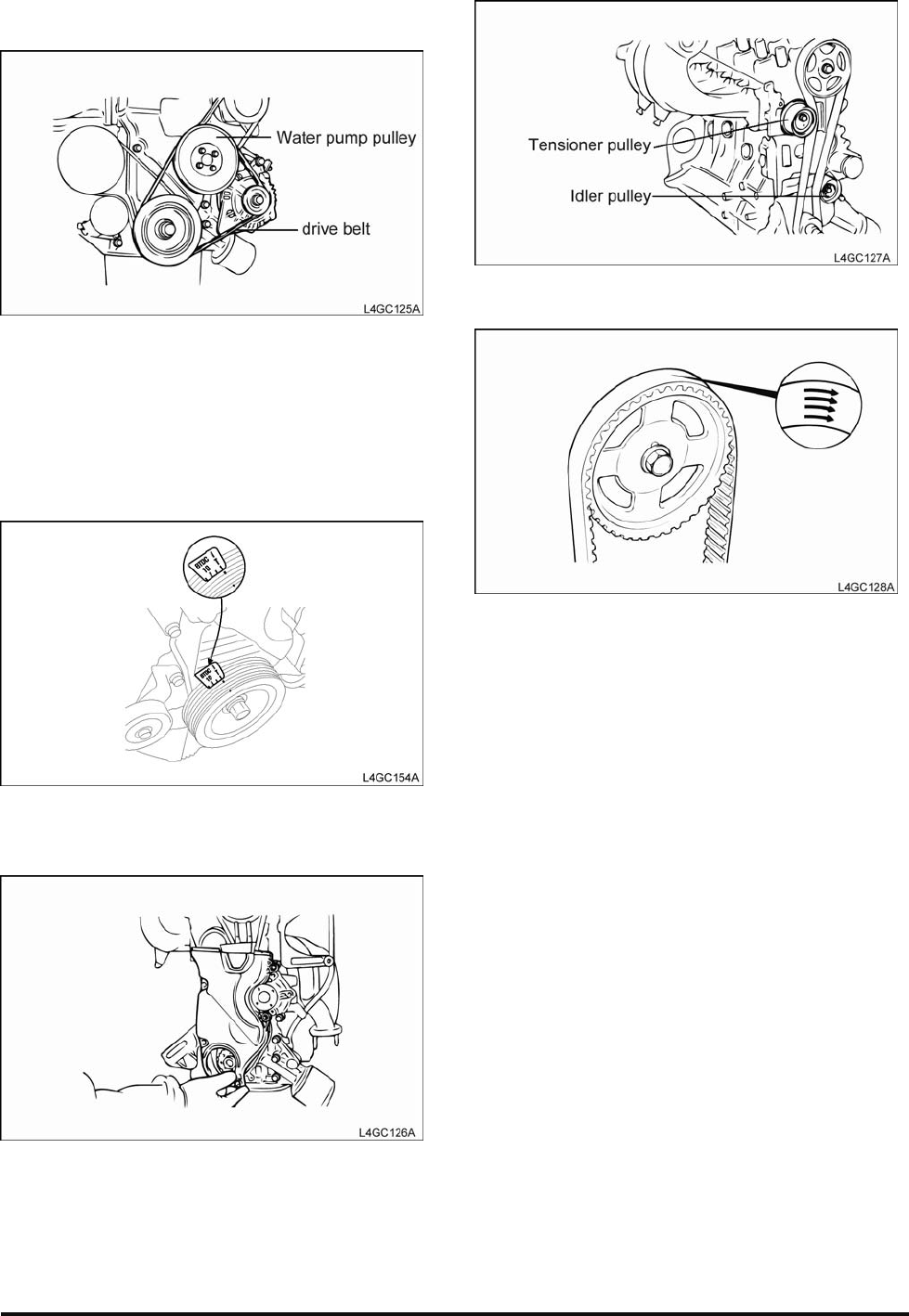

Removal
1. Temporarily loosen the water pump pulley bolts.
2. Loosen the alternator bolt and remove the belt.
3. Remove the water pump pulley.
4. Remove the timing belt upper cover.
5. Turn the crankshaft, and align its groove with
timing mark “T”
6. Remove the crankshaft pulley.
7. Remove the crankshaft flange.
8. Remove the timing belt lower cover.
9. Remove the timing belt tensioner pulley.
10. Remove the timing belt form the camshaft
sprocket.
NOTE: When reusing the timing belt, put an arrow
mark on the rotation direction (or front side of
engine)before removal to help re-install it to
original installation direction.
11. Remove the idler.
12. Remove the crankshaft sprocket.
13. Remove the cylinder head cover and remove
camshaft sprocket.
