G420F(FE) Service Manual Chapter 4. Engine Electrical System 138
Installation
Installation is the reverse order of disassembly.
Take care of the following items.

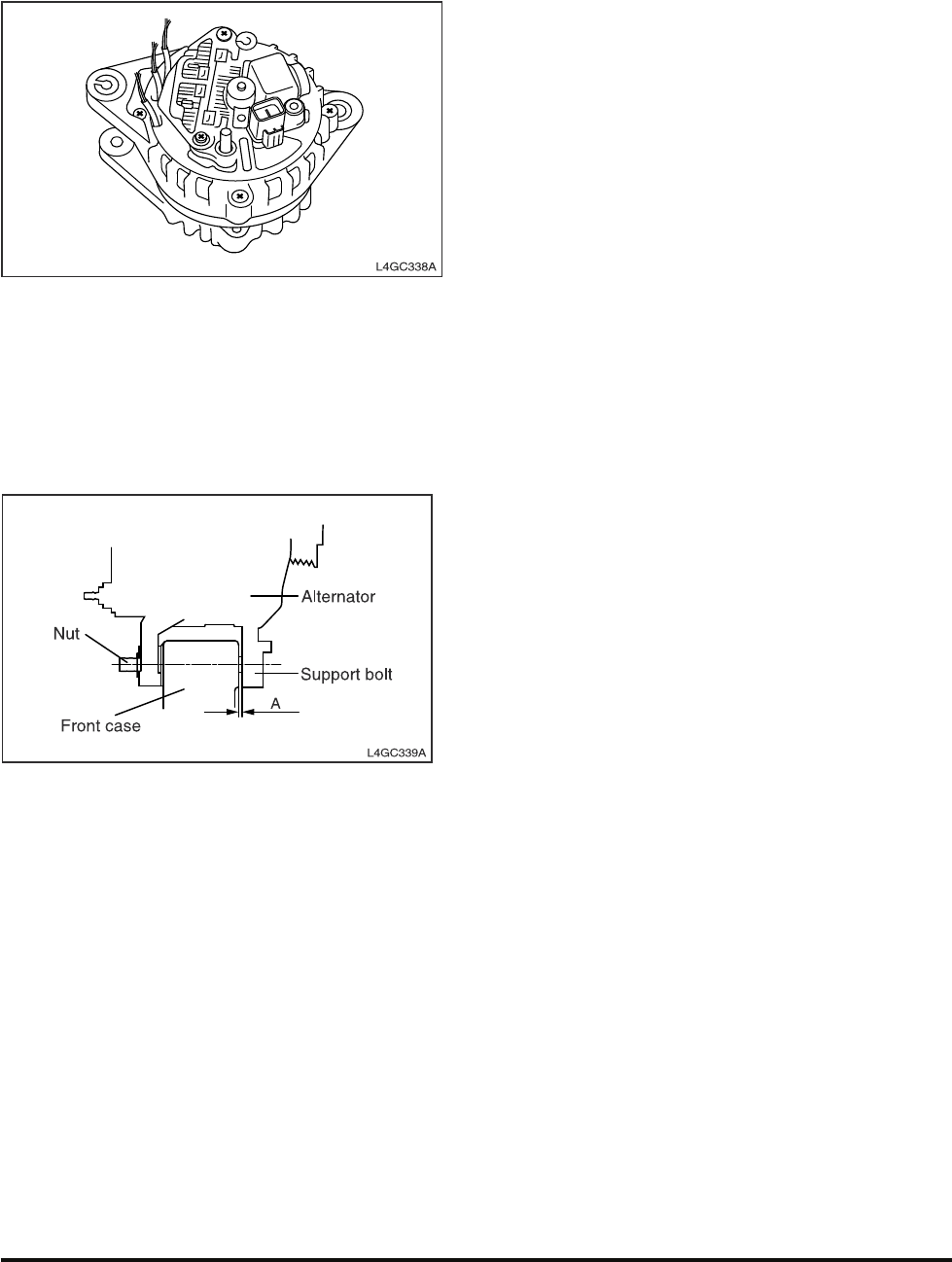

1. Before installing the rotor to the bracket, insert the
wire into the small bore of rear bracket and fix the
brush.
2. After installing the rotor, remove the wire.
Installation
1. After placing the alternator, insert the support bolt.
(At this time do not insert the nut.)
2. After pressing forward the alternator, Contact the
alternator front bracket with front case (A) as
shown in the illustration.
3. Insert and install the nut by tightening it to the
specified torque.
