G420F(FE) Service Manual Chapter 3. Engine Mechanical System
106

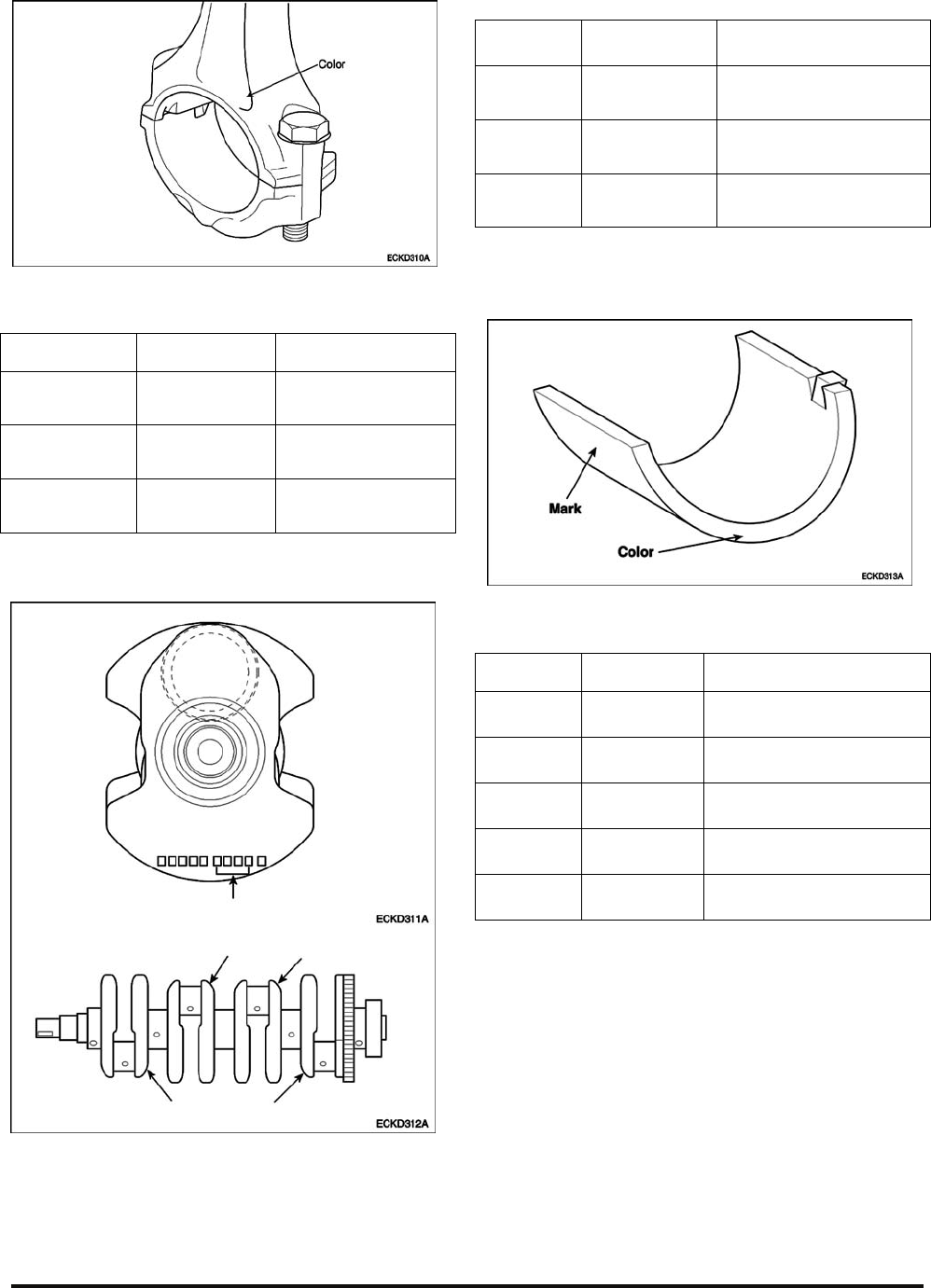

Connecting rod mark location
Discrimination of connecting rod
CLASS MARK INSIDEDIAMETER
a WHITE
48.00~48.006mm
(1.8896~1.8899in.)
b NONE
48.006~48.012mm
(1.8899~1.8902in.)
c YELLOW
48.012~48.018mm
(1.8902~1.8904in.)
Crankshaft pin mark location
Discrimination of crankshaft
CLASS MARK
OUTSIDE
DIAMETER OF PIN
Ⅰ WHITE
44.960~44.966mm
(1.7700~1.7703in.)
Ⅱ NONE
44.955~44.960mm
(1.7698~1.7700in.)
Ⅲ YELLOW
44.948~44.955mm
(1.7696~1.7698in.)
Place of identification mark (Connecting rod
bearing)
Discrimination of connecting rod bearing
CLASS MARK INSIDE DIAMETER
AA BLUE
1.514~1.517 mm
(0.0596~0.0597in.)
A BLACK
A1.511~1.514 mm
(0.0595~0.0596in.)
B NONE
1.508~1.511 mm
(0.0594~0.0595in.)
C GREEN
1.505~1.508 mm
(0.0593~0.0594in.)
D YELLOW
1.502~1.505mm
(0.0591~0.0593in)
