Saneo B, Saneo C Installing the toilet
27
4.7 Electrical connection

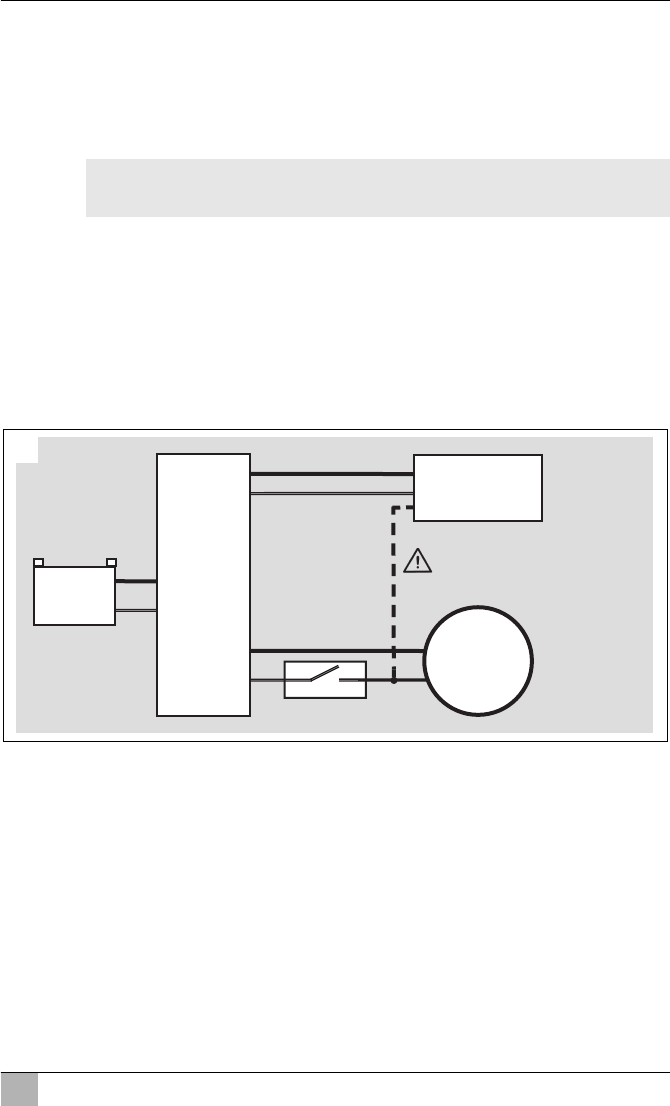

4.7.1 System scheme
General system scheme
!
Please note the following instructions before installing the cassette toilet:
Connect the toilet to its own voltage supply from the main terminal block
of the vehicle (fig. l).
The toilet should not be directly connected in parallel with other power-
consuming devices, since there can otherwise be malfunctions or the
toilet control can be damaged (fig. m).
A pre-fuse is not necessary, because the toilet is internally fused.
WARNING!
The electrical system must be wired by qualified personnel.
12 V DC
Battery
Fuse/
main fuse box
Saneo
toilet
Water pump
Do NOT connect when
using a water pressure
pump!
+
–
+
–
+
–
l
