Saneo B, Saneo C Installing the toilet
19
Installation of control and operating panel of the toilets Saneo B,
Saneo C

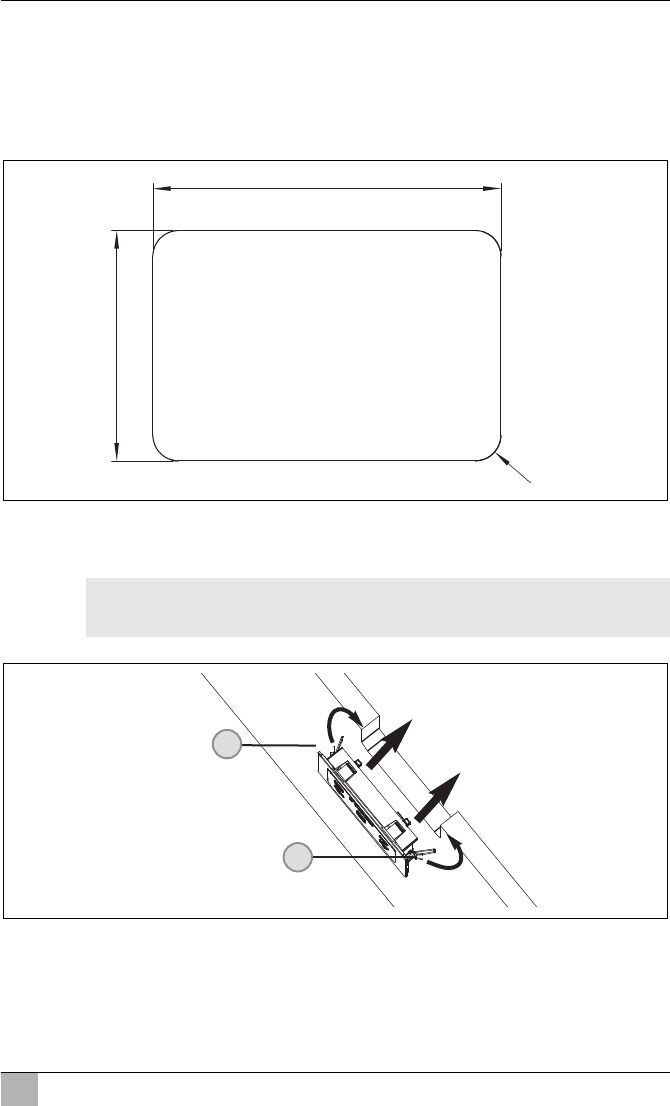

Attach the control and operating panel and for the toilets Saneo B,
Saneo C at an easily accessible location in the wall. Make a cutout in the
wall beforehand (fig. a). Use the scale template (4) to make the cutout.
To insert the operating panel in the wall cut-out, press back the retaining
springs (fig. b 1) of the control and operating panel.
!
Connect the electrical cables to the couplings for installation of the
operating and control panel (supplied unassembled) (chapter “Electrical
connection” on page 27).
CAUTION!
There is a risk of injury due to the springs springing back!
135 mm +/- 0.1mm
R 10
88 mm + 0.2 mm
