Installation Instructions

EN
Installing the toilet Saneo B, Saneo C
14
4.2 Making wall cutouts
4.2.1 Service door wall cutout

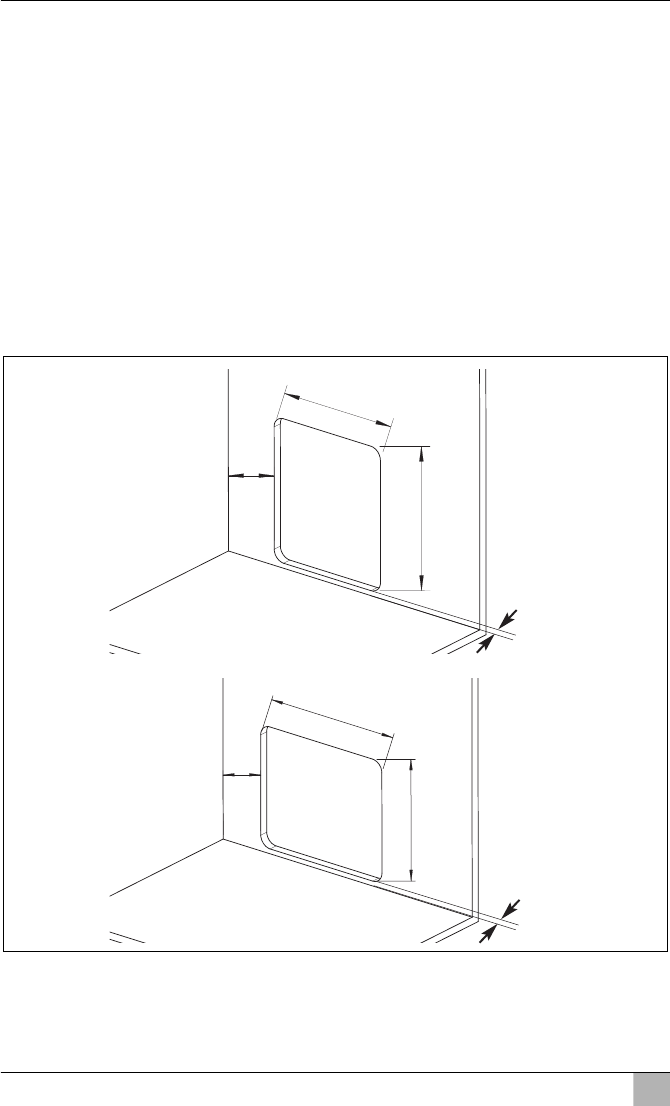

Make a cutout in the wall for the cassette with the dimensions:
For service door SK5 vertical
–y
min
= 12.5 mm, y
max
= 22 mm;
b = 310 mm +/- 1 mm, h = 360 mm +/- 1 mm.
For service door SK5 horizontal
–y
min
= 12.5 mm, y
max
= 26 mm;
b = 360 mm +/- 1 mm, h = 310 mm +/- 1 mm.
The dimension x results from the placement of the toilet. Note the position of
the service door (template (3) and (4) on the packaging).
b
x
h
y
b
h
y
x
