Operating instructions

EN
Connecting the device MCA1215, MCA1225, MCA1235
24

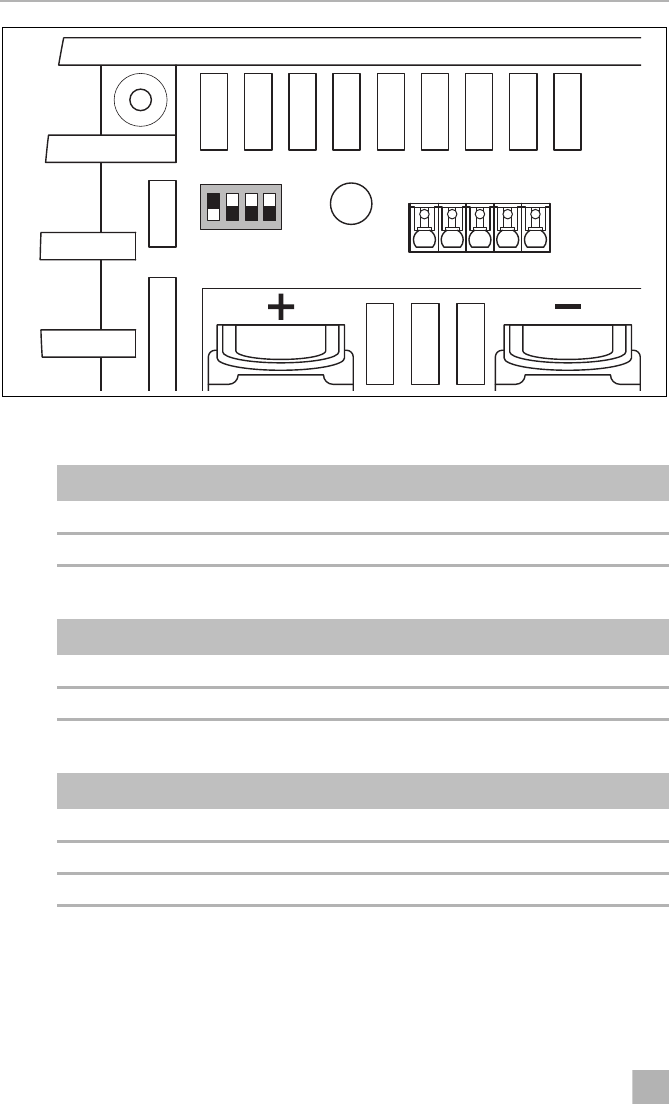

➤ Use the DIP switches (fig. a, page 24 ) to set the required functions and values:
– To set the absorption voltage:
– To set the floating voltage:
– To set the power supply mode (recommended for Dometic eStore batteries):
– Enabling the control for external devices (such as MPC01, does not apply to
MCA-RC1)
Switch 1 Switch 3 Switchover voltage
ON OFF 14.4 V
OFF OFF 14.7 V
Switch 2 Switch 3 Retention voltage
ON OFF 13.5 V
OFF OFF 13.8 V
Switch 1 Switch 2 Switch 3 Constant voltage
OFF OFF ON 13.2 V
OFF ON ON 13.8 V
ON OFF ON 14.4 V
DC OUTPUT
STATUS
1
OFF
ON
234
a
