User manual

825 12 00-02

Model CK 150

Instructions for use

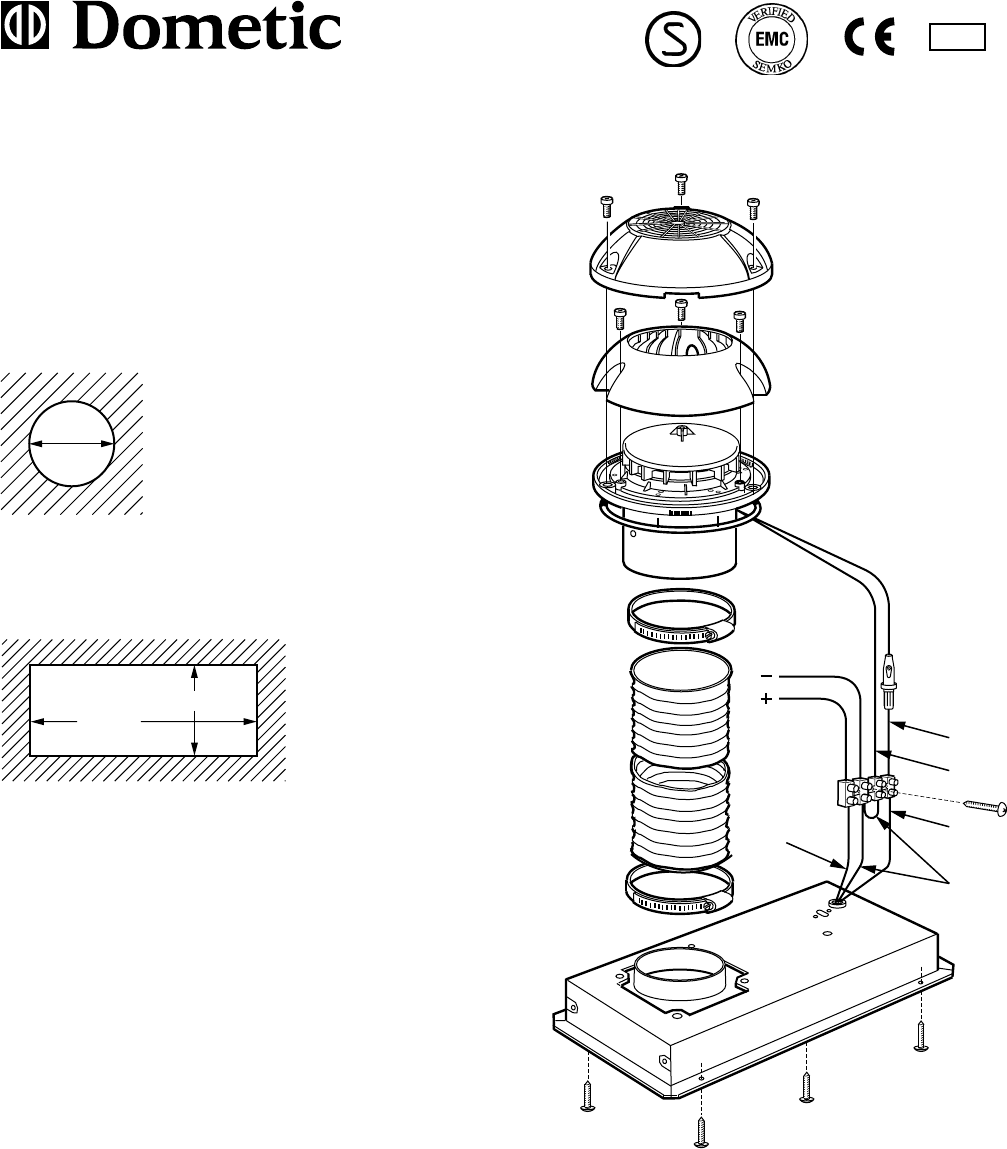

1 Hole for hose in shelf, if any.

2 Recess for installation in wall cupboard.

3 From the fan.

4 From battery.

5 Fuse holder with a T4 A fuse 5x20 mm.

Spare part number for fuse: 385 80 65-01.

6 White

7 Black

8 Red

020074

Type: CK

105 mm

381 mm

142 mm

PAGE 1
e5 020074 Type: CK Model CK 150 Instructions for use C 1 B 105 mm A 3 2 4 5 142 mm 381 mm 6 7 8 6 7 D 1 2 3 4 5 Hole for hose in shelf, if any. Recess for installation in wall cupboard. From the fan. From battery. Fuse holder with a T4 A fuse 5x20 mm. Spare part number for fuse: 385 80 65-01.
PAGE 2
Placing The fan filter The ventilator is for use in caravans, motorhomes and boats and designed to be placed above the food preparation area, preferably built-in to an existing top cupboard. The fan filter that absorbs grease in cooking fumes requires cleaning now and then, how often depends on how much the cooker is used and for how much the fan is in operation. Do not wait until the suction power of the fan begins to decrease noticeably.
