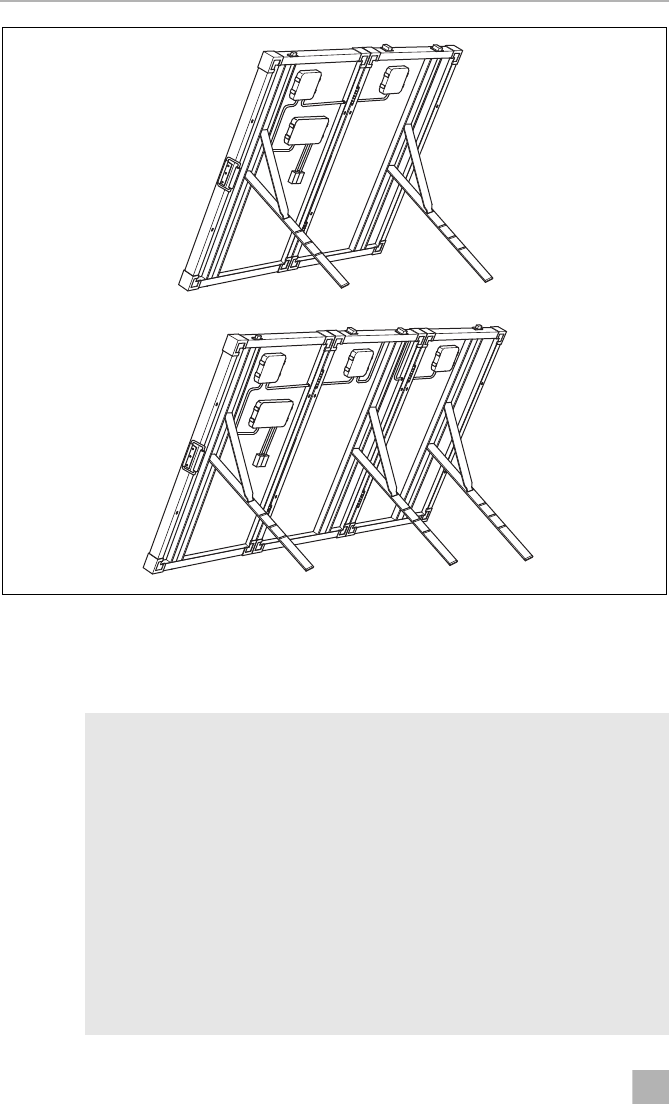

➤ Extend the stands to the required length and lock them in position.
6.2 Connecting the solar panel
A
NOTICE!
• Always observe the following connection sequence.
Overvoltage can damage the electronics of the device.
– Connecting the solar panel: Connect the Alligator clips to the
battery, then connect the Anderson plug to the solar panel,
finally connect the load.
– Disconnecting the solar panel: Disconnect the load first, then
disconnect the Anderson plug from the solar panel, finally dis-
connect the Alligator clips from the battery.
• Ensure that the battery clamps do not get in contact with each other.
• Only use the cable with Anderson plug and alligator clips supplied.
• Make sure that the polarity is correct.
• Make sure that the connection is tight and secure.
4
