DP600 Program Optimizer Manual
Using the DP600
5. Pressonthedesirednumberstoenteranoptionalgatewayaddress,thenselect
ok.
6. Inthe 
Upper Interface Settingsbox,presstheUse DHCPbox(ifitisunchecked)for
dynamicaddressingoruncheckthisbox(bypressingonit)ifyouwanttoentera
fixedIPaddress.
TheupperinterfacecorrespondstothetopEthernetport(port0)ontheDP600rear
panel.Thelowerinterface(bottomport)iscurrentlynonfunctional.
7. Ifyou
specifiedafixedIPaddress,therespectivefieldsarenowactive.Makeyour
entriesbypressingonthe
IP Addressand Netmaskfieldstodisplaythecorresponding
numberpadscreens,thenpressontheappropriatenumbers(seegatewayaddress
numberpadinstructionsabove).Alternatively,youcanpressonthefield,andthen
usetheUSBkeyboardtomakeyourentries(asdescribedearlierforthe
Hostname
field).
8. Presstherightarrow
atbottomoftheNetworkscreen.
The
Date & Time screenappears,asshowninFigure 2‐6.

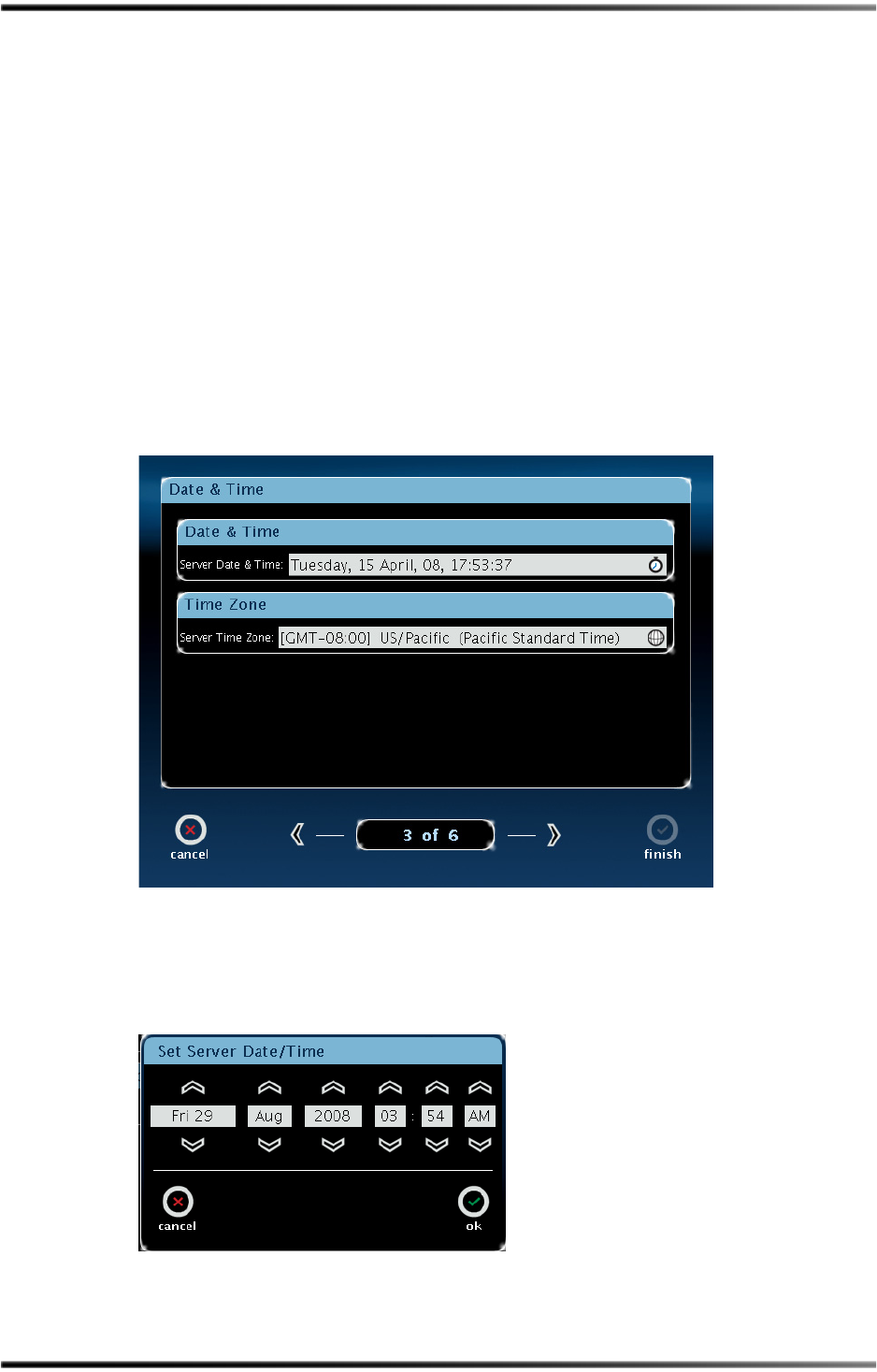

Figure2‐6 
Figure 2-6 Date & Time Screen
9. Pressthe Server Date & Timefield.
The
Set Server Date/Timescreenappears,asshowninFigure 2‐7.
Figure2‐7 Set
Figure 2-7 Set Server Date/Time Screen
