XR6/XR10 Users Guide
Silencing an Alarm All/Perimeter and Home/Away Systems 1. While the alarm bell or siren is sounding, enter your user code. The keypad displays DISARM SILENCE. 2. Press the SELECT key under SILENCE to stop the bell or siren. This does NOT disarm the system. 3. If your system is programmed to send an Abort (alarm cancel) report to the central station, the keypad displays ALARM CANCELLED. Area Systems 1. While the alarm bell or siren is sounding, enter your user code.
Security Command® User's Guide for XR6 and XR10 Command ProcessorTM Panels Table of Contents About your system Emergency Evacuation Plans ....................................... ii About Your Security System .......................................... 1 The Security Command Keypad ................................... 2 Special Security Command Messages ......................... 3 Special Security Command Tones ................................ 3 Understanding Security System Terms .........................
Emergency Evacuation Plans The National Fire Protection Association recommends that you establish an emergency evacuation plan to safeguard lives in the event of a fire or other emergency. Use the following steps as a guide. First Floor Second Floor Fire Escape Draw a floorplan of your home or business On a clean sheet of paper, draw the walls, windows, doors, and stairs. Also draw any obstacles that a person may encounter while exiting the building such as large furniture or appliances.
Introduction About Your Security System A Note About False Alarms Your Security Command system has been designed with your safety and comfort in mind. It uses the latest in computer technology to create the most user friendly security and fire system on the market today. One of the most important concerns facing the security industry today is false alarms. The accidental dispatching of police and fire agencies places others in jeopardy by limiting the response capability of those emergency service units.

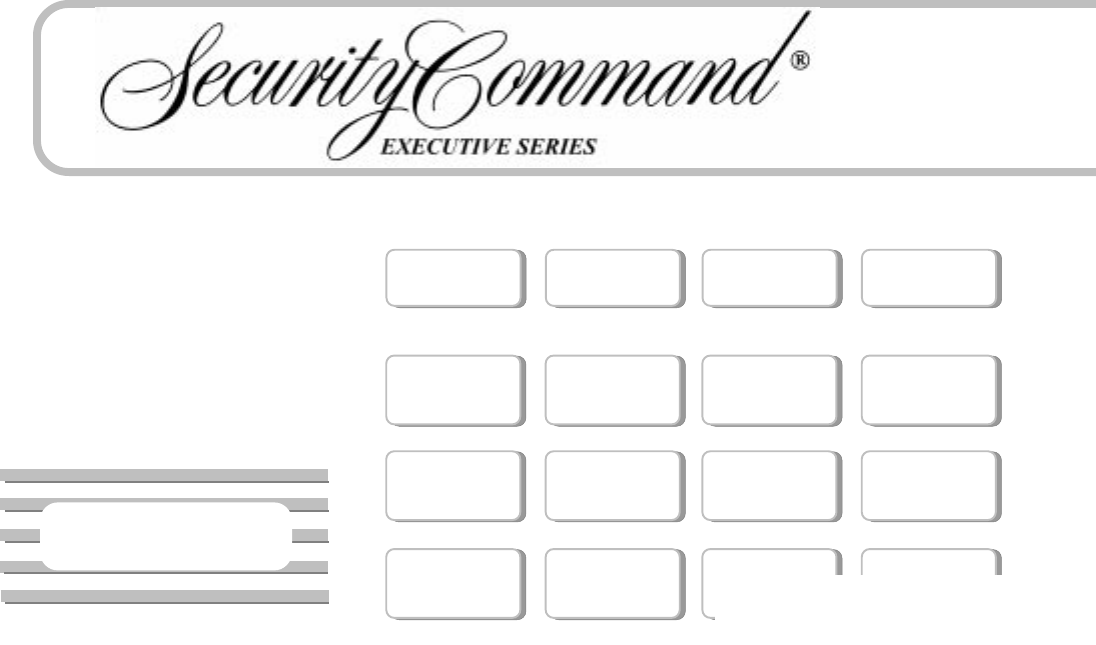

The Security Command Keypad Your system may have one or more easy to use Security Command keypads (16 or 32 character) that allow you to properly operate the system.
Special Security Command Messages INVALID CODE As you use your system, you’ll occasionally see a keypad display that asks you to enter a code or that describes a condition on the system. Below are some examples of the displays you'll see: SYSTEM TROUBLE or SERVICE REQUIRED ALARM A 24 hour zone (for example, fire or panic) or an armed burglary zone has been faulted. Your system may sound bells or sirens. ALARM CANCELLED An authorized user has cancelled an alarm condition by entering their security code.
Understanding Security System Terms Throughout this guide, and in some displays on your keypad, you’ll see certain words or phrases that might be unfamiliar. Although every effort has been made to use terms that are commonly known, there are some for which there was no acceptable substitute. Below are some terms you’ll see here and on your keypad display: Arming This is the term used for turning on the burglary protection in one or more areas of the system.
Understanding Security System Terms Central Station Monitoring Your system can also be programmed to automatically send alarm, trouble, and arming and disarming reports to a central station. Operators at the central station can in turn dispatch the appropriate authorities or contact you with the specific event information. Status Status List The keypad Status List displays any alarm or trouble condition on a zone and any trouble condition that occurs with the AC power or battery power.
How your System Operates Your system has been programmed to operate in one of two modes: All/Perimeter, or Home/Away. • All/Perimeter - In this mode you select All to turn on the entire system or Perimeter to turn on just the exterior door and window protection when you're inside. • Home/Away - In this mode you select Away to turn on the entire system or Home to turn on just the exterior door and window protection when you're inside.
All/Perimeter System Arming Area Assignment: Your security system is divided into two separate areas. Motion detectors, inside doors, and other interior protection devices are assigned to the Interior area while windows and exterior doors are assigned to the Perimeter area. Perimeter or All: When arming an All/Perimeter system, the keypad displays PERIM ALL. If you select ALL, you arm both the Perimeter and the Interior of the system.
All/Perimeter System Disarming Disarming: While the system is armed, you can only enter the premises through an entry/exit delay door without causing an alarm. After opening the door, the Security Command keypad sounds a prewarn tone to remind you to disarm the system. You must disarm the system before the prewarn tone expires or an alarm on the door zone will occur. During the prewarn tone, the keypad displays ENTER CODE:. Enter your security code to disarm the system.
Home/Away System Arming 3. Select SLEEP to arm the Perimeter and Interior. Area Assignment: Your security system is divided into two or three separate areas. Motion detectors, inside doors, and other interior devices are assigned to an Interior and possibly Bedroom area while windows and exterior doors, are assigned to a Perimeter area. 4. Select AWAY to arm the Perimeter, Interior, and Bedroom. Arming the system: When arming a Home/Away system, the keypad displays HOME AWAY or HOME SLEEP AWAY.
Home/Away System Disarming Disarming: While the system is armed, you can only enter the premises through an entry/exit delay door without causing an alarm. After opening the door, the Security Command keypad sounds a prewarn tone to remind you to disarm the system. You must disarm the system before the prewarn tone expires or an alarm on the door zone will occur. Disarming a Home/Away System 1. During the entry delay, the keypad displays ENTER CODE:. Enter your 4 digit security code. 2.
Security Command User Menu Sensor Reset Many of the features of your system have been put into a User Menu you can access from any Security Command keypad. The menu requires you to enter your user code and then only shows those functions to which you have access. User Code Level: Master or Standard To access the User Menu: 1. Press the COMMAND key until MENU? NO YES displays. 2. Select YES. The keypad displays ENTER CODE: –. Enter your user code.
Outputs On Off Bypass Zones User Code Level: Master or Standard. User Code Level: Master or Standard. Function: Allows you to turn the system's outputs on and off. Function: Allows you to bypass a zone prior to arming the system. This function is used to individually turn your system’s relay outputs on and off. Your system may use these outputs to control interior and exterior lighting, or heating, air conditioning, or other appliances.
Zone Monitor Using the Zone Monitor Function User Code Level: Master and Standard. 1. Access the User Menu. Function: Allows the system to monitor selected disarmed zones (doors, windows, or motion detectors) and sound a tone at the keypad as well as display their name on the keypad display as they're faulted. 2. Press the COMMAND key until ZONE MONITOR? displays. This is an ideal feature for monitoring door zones to tell when someone comes in or goes out. 4.
System Test User Codes User Code Level: Master or Standard. User Code Level: Master only. Function: System Test is used to test the battery, alarm bell or siren, and communication to a central station. The System Test function begins automatically as soon as you select it. Function: Allows you to add or delete a user from the system or change their security code or authority level. Using the System Test Function 1. Access the User Menu. 2. Press the COMMAND key until SYSTEM TEST? displays. 3.
7. The display changes to MASTER? NO YES. Select YES to make this a Master code level with the authority to Add, Delete, and Change user code information. User Codes continued User Code Authority Levels System Options Standard Master Sensor Reset Outputs On/Off Zone Monitor System Test Arm and Disarm Display Events User Codes ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ Adding User Code Numbers: 1. Access the User Menu. 2. Press the COMMAND key until USER CODES? displays. 3. Press any one of the SELECT keys.
User Codes continued Deleting User Code Numbers: Changing User Code Numbers 1. Access the User Menu. 1. Access the User Menu. 2. Press the COMMAND key until USER CODES? displays. 2. Press the COMMAND key until USER CODES? displays. 3. Press any one of the SELECT keys. The keypad displays ADD DEL CHG. 3. Press any one of the SELECT keys. The keypad displays ADD DEL CHG. 4. Press the SELECT key under DEL to delete a user code from the system.
The event display you'll see at the keypad is slightly different for each event type. Display Events User Code Level: Master or Standard. Function: Allows you to review up to 16 past events that occurred on your system from any keypad. Once 16 events are stored, any new event causes the oldest event to be cleared. SELECT keys When accessed, the Display Events option displays events recorded automatically by the system in the order of their occurrence.
Zone Event Displays Arming and Disarming Event Displays This section displays alarms, troubles, and other events that could occur on your system's protection zones. This displays any arming or disarming of system areas. Display Description JONES RESIDENCE 2 BURG ALR A burglary alarm occurred on zone 2. Press the SELECT key under the zone number to display the custom zone name programmed into the system. Zone Type - There are 7 possible zone types you may see here.
User Code Change Event Displays User Checkin Event Displays This displays any addition, deletion, or change to a user code. This shows when a user selected the pager CHECKIN feature from the User Menu. See page 11 for more information. Display JONES RESIDENCE 9 ADD 12 Description User 9 added user 12 to the system.
System Setup Security Command keypads We've provided this System Setup section to allow you to track the current and future status of the programmable options on your Security Command system. If you make changes to the system, you should update the information contained on these pages. Address Your system is monitored by a central station.
User Codes Your system provides you with twelve user codes you can program for individual users. As you add new users or change current user's codes, you can keep track of their name, user number, and authority level here in this section.
Numeric Pager Display 00128–301 234 Account Number Message ID Always Zero Zone, Area, or User Number Account Number This number has been programmed into your Security Command system as an identifier. Whenever the system sends a message to your pager, it will always send the account number first to identify itself. Message ID This is always a single digit, 1 to 6, that describes the message sent.
Notes: 23
