5.1.2 Signal Electrical Characteristics
Input signals shall be low or Hi-Z state when VDD is off.
LVDS signal (Note 1)
LVDS Transmitter: THC63LVDM83A (THINE) or equivalent
N

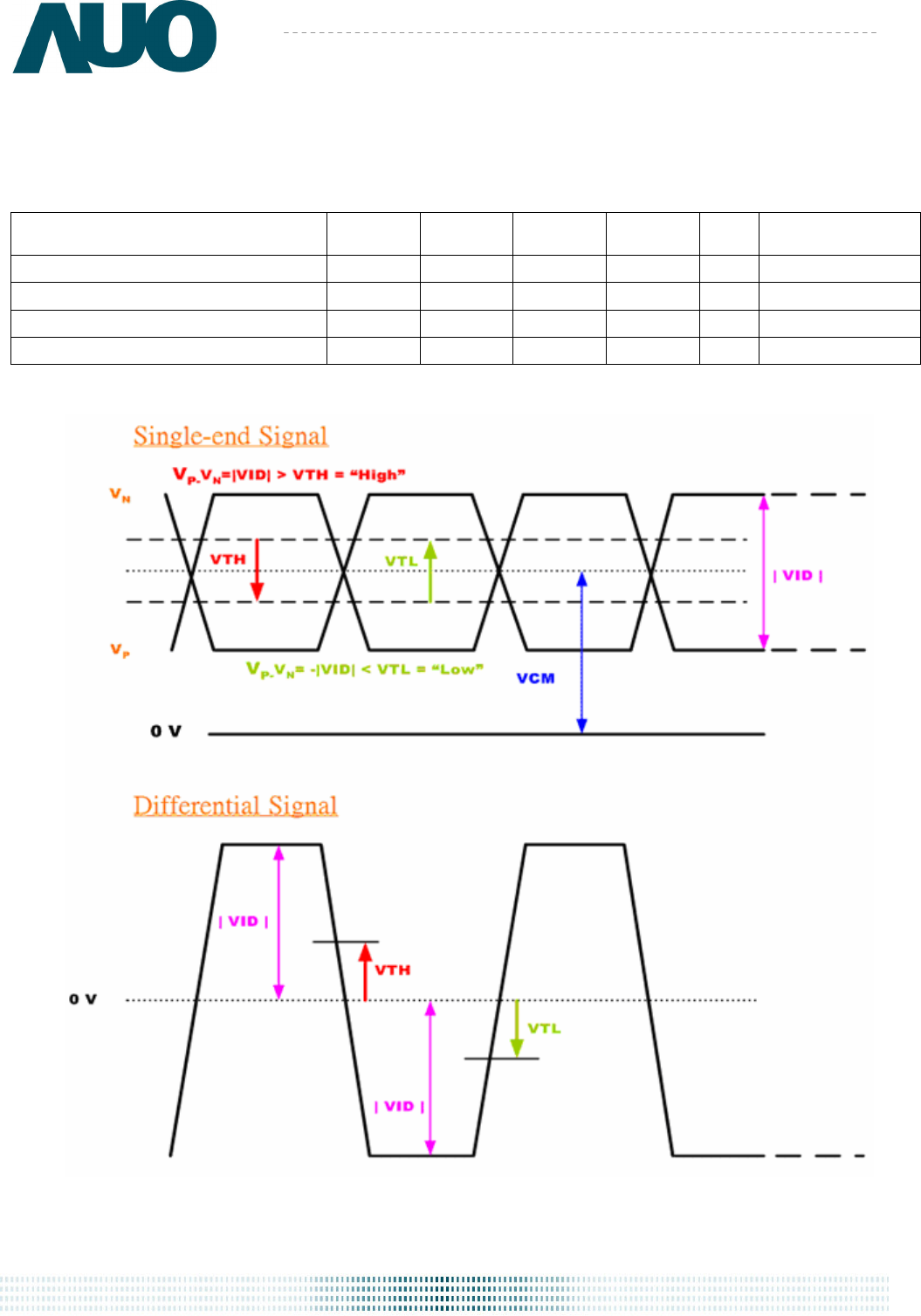

ote 1: LVDS Signal Waveform.
P
arameter Symbol Min. Typ. Max. Unit
Remark
Differential Input High Threshold VTH - - 100 mV VCM=1.20V
Differential Input Low Threshold VTL -100 - - mV VCM=1.20V
Input Differential Voltage ｜VID｜ 100 400 600 mV
Differential Input Common Mode Voltage
VCM 1.1 - 1.45 V VTH, VTL= ±100mV
