Specifications

G0
65VN01 V2 Ver. 1.2
8/24
G
065VN01 V2

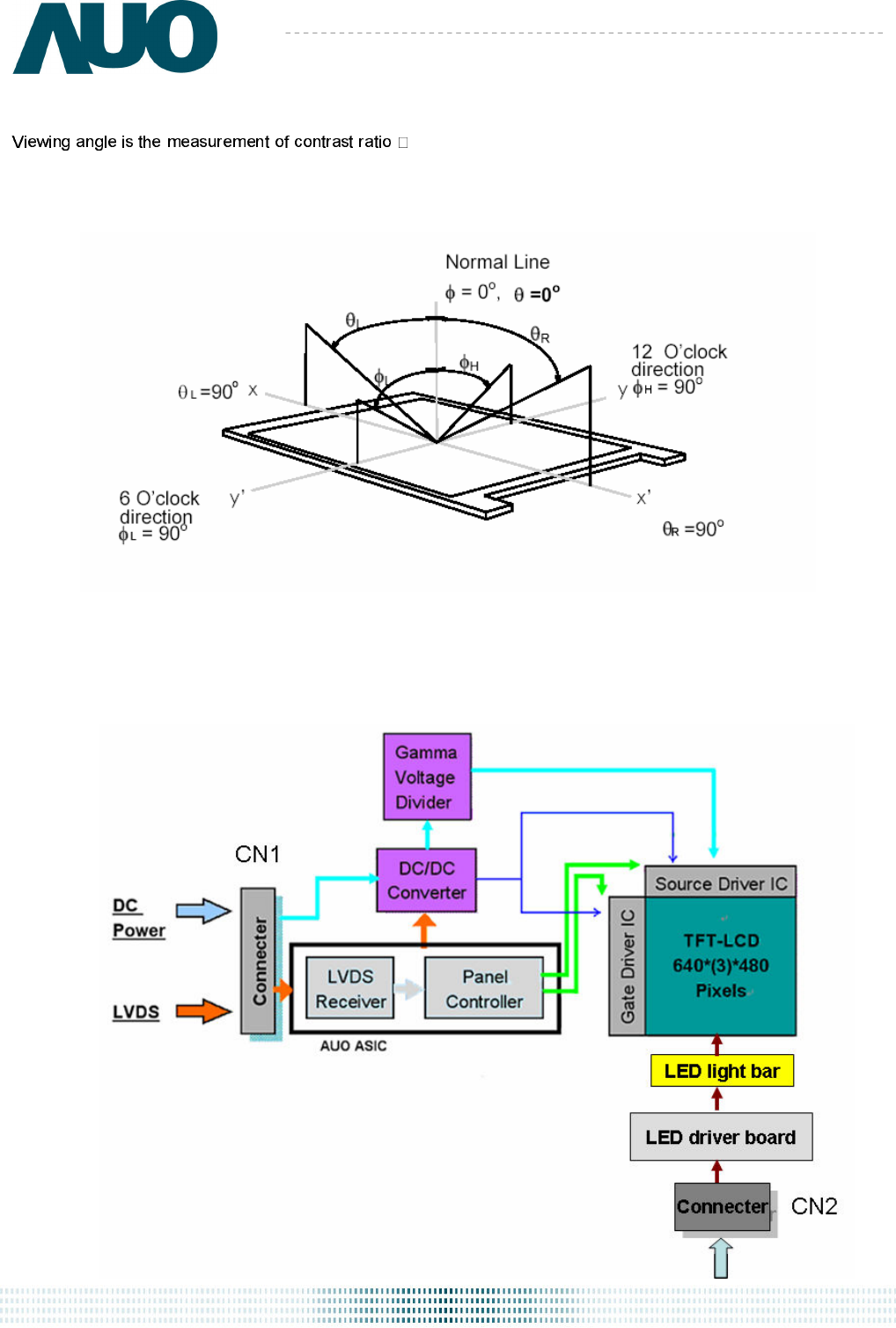

Note 6: Definition of viewing angle
10, at the screen center, over 180° horizontal and 180° vertical range.
The 180° horizontal (θ
L
, θ
R
) and 180° vertical (Φ
H
, Φ
L
) range are illustrated as following figure.
3. Functional Block Diagram
T
he following diagram shows the functional block of the G065VN01 V2 color TFT/LCD module.
