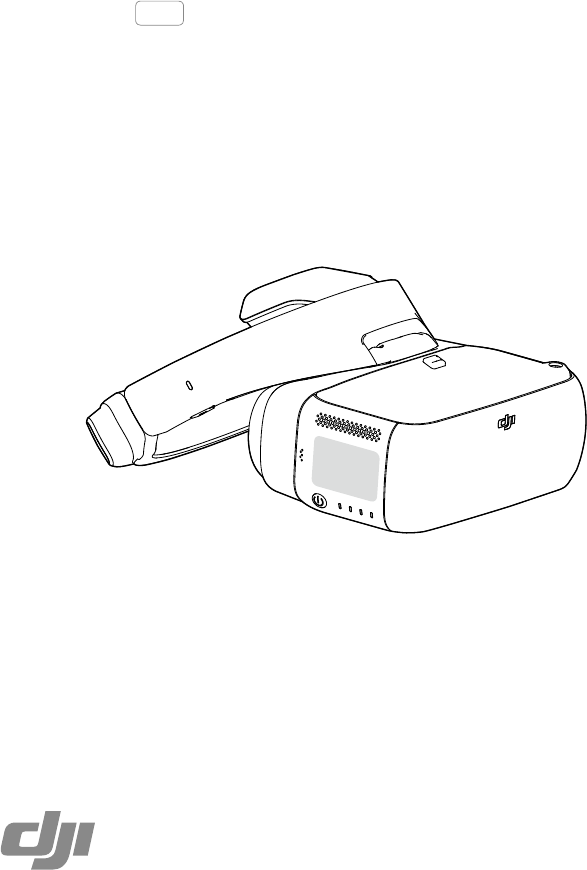

DJI GOGGLES Racing Edition User Guide 2017.11 V1.
Searching for Keywords Search for keywords such as “battery” and “install” to find a topic. If you are using Adobe Acrobat Reader to read this document, press Ctrl+F on Windows or Command+F on Mac to begin a search. Navigating to a Topic View a complete list of topics in the table of contents. Click on a topic to navigate to that section. Printing this Document This document supports high resolution printing.
Contents Using This Manual 2 Legends 2 Read Before First Usage 2 Video Tutorials 2 Download the DJI Assistant 2 2 Product Profile 4 Introduction 4 At a Glance 4 Installation and Wearing 6 Usage 7 Operating Control 7 Connection 8 Screen 16 Controlling the Aircraft 19 Viewing Photos and Videos 20 Charging the Goggles RE 22 Upgrading Firmware 24 DJI Assistant 2 24 DJI GO 4 App 24 Cleaning and Maintenance 25 Cleaning the Goggles RE 25 Maintenance of Lenses 25 Specifi
Product Profile Introduction DJI Goggles Racing Edition (abbreviated as “Goggles RE”) are equipped with high-performance displays and an ultra-low latency video downlink for use with DJI aircraft, giving you a real-time aerial FPV (First Person View) experience. Goggles RE can also be used to play HD videos, bringing you an immersive high-definition viewing experience.
DJI Goggles Racing Edition User Manual DJI OcuSync Air Unit 1 3 2 1. Camera Port* Connects to the DJI OcuSync Camera. 2. S.Bus Port Connects with the 3-in-1 Cable (Power, S.Bus, UART), and connects to the power, flight controller, and OSD port based on the information below. RED: Power BLACK: Power GND WHITE: UART RX (Connects to OSD TX) GRAY: UART TX (Connects to OSD RX) BROWN: Signal GND YELLOW: S.Bus (Connects to Flight Controller RX) 3.
Installation and Wearing 1. Insert the Headband into the slot above the Goggles RE body until you hear a click. Now check that it has been securely fastened. Click Press the Headband Buckle and move it in the opposite direction to release the Headband. 2. Align the lenses over your eyes and pull the Headband down. Adjust the Headband Knob until the Goggles RE fit snugly and comfortably on your face and head. Goggles RE can be worn over glasses.
Usage Operating Control [1] Power Button Press the power button once, then press it again and hold to turn the Goggles RE on/off. Battery level indicators will display the current battery level. Low Battery Level High [2] Battery Level Indicators When the battery is powered off, press the power button once to light up the battery level indicators to display the current battery level. The battery level indicators will also show the current battery level during charging and discharging.
DJI Goggles Racing Edition User Manual [4] Charging Status Indicator This indicates the current charging status. The LED will be solid red, yellow or green to reflect low, medium, and high power levels respectively. Blinking Red Solid Red Solid Yellow Solid Green Headband abnormal 0~29% 30~89% 90~100% [5] Back Button Press this to return to the previous menu, or exit the current Intelligent Flight Mode. [6] Function Button For DJI aircraft that support focus (e.g.
DJI Goggles Racing Edition User Manual 2. Power on the Goggles RE, swipe downward with two fingers on the touch panel to enter the shortcut menu and select “Racing Drone (Analog)> Frequency Scanning” to search for the frequency you need. The analog frequency band is 5.650 GHz - 5.925 GHz, of which 5.725 GHz - 5.850 GHz are ISM frequency bands.
DJI Goggles Racing Edition User Manual The S.Bus port and PPM port on the Air Unit are only used when transmitting remote control signals. These ports don’t need to be connected if only using video downlink. There are up to 19 channels (5.8 GHz: 12 channels; 2.4 GHz: 7 channels) for digital video transmission, and each bandwidth is 10 MHz. You can manually select the transmission channel to avoid interference from other devices.
DJI Goggles Racing Edition User Manual 2. Power on the DJI OcuSync Air Unit and press the link button on the Air Unit with an appropriate tool when the linking status indicator is solid green. The indicator will turn solid red when the Air Unit is waiting for linking. 3. Power on the Goggles RE and swipe down on the touch panel with two fingers to enter the shortcut menu, then select “Racing Drone (Digital) > Linking Settings > Advanced Linking > Connect two sets of Goggles RE > Primary” and confirm.
DJI Goggles Racing Edition User Manual Mavic Pro With OcuSync, the Goggles RE can be connected to the Mavic Pro wirelessly. Toggle the control mode switch of the Mavic Pro to RC mode before linking. Ensure that the DJI GO 4 app is updated to the latest version. Standard Mode Standard Mode is suitable for both single and dual operator aircraft control.
DJI Goggles Racing Edition User Manual Coach Mode Coach Mode is suitable for dual operator aircraft control. In this mode, the pilot using the remote controller can focus on flight, while the Goggles RE operator with a slave remote controller can view the environment in real-time FPV for more intuitive control. By moving their head, the Goggles RE wearer can control aircraft orientation or gimbal movement.
DJI Goggles Racing Edition User Manual 5. Press the Link button on the Mavic Pro. Once linked, the linking status indicator will turn solid green. 6. Select “Connect Remote Controller” and confirm in Goggles RE. 7. Power on the secondary slave remote controller and connect it with the mobile device. 8. Launch the DJI GO 4 app and enter the camera view. Press , then select “Remote Controller Linking > Secondary Remote Controller,” for successful linking in a few seconds.
DJI Goggles Racing Edition User Manual Linking Method 1. Put on the Primary Goggles RE and power on. 2. Use the touch panel to enter “Tools > Settings > Linking Settings”. 3. Select “Advanced Linking > Connect two sets of Goggles RE > Primary/Remote Controller” and confirm. The linking status indicator will go solid red to wait for linking. 4. Press the Link button on the Mavic Pro. Once linked, the linking status indicator will turn solid green. 5.
DJI Goggles Racing Edition User Manual Screen Main Screen The main screen of the Goggles RE and functions are described as follows: 1 2 3 IN-FlIGHT (GPS) 4 5 6 7 12 8 02:36 FLIGHT MODE GPS 9 10 100% Vibrations Detected in Gimbal Pitch Axis 10˚ 60% 11 12 VPS 2.5 m 17 13 VS 2.5 m s HS 10 m s D 200 M H 300 m ISO AUTO S F 2.8 EV 0.0 LIVEVIEW 720P60 16 14 15 1. Aircraft Status Indicates aircraft flight status. 2. Flight Mode Indicates current flight mode. 3.
DJI Goggles Racing Edition User Manual 11. Prompt Message Shows warning messages. Swipe up or down to select and tap to delete prompts. 12. Intelligent Flight Modes Tap to select TapFly, ActiveTrack, Terrain Follow, Tripod, and other intelligent flight modes. 13. Tools Tap to set the settings of the Goggles RE and select Auto Takeoff/Landing, HDMI video playback, or flight photos/videos playback.
DJI Goggles Racing Edition User Manual Digital Transmission Screen 1 2.4V 2 3 4 1080P Wireless Settings Linking Settings Remote Controller Channel Camera View Settings 6 Zoom Scale Settings Brightness On-screen Display Camera Rotation Video Storage Settings Exit 5 1. Aircraft Voltage Shows the aircraft voltage read by the flight controller. 2. Live View Mode Shows the current live view resolution. 3.
DJI Goggles Racing Edition User Manual d) Camera View Settings Supports 1280×960, 1280×720, and 640×480 live view modes. e) On-screen Display Enables/disables the Image Transmission signal, Image Transmission Resolution, and Flight Attitude on-screen displays separately. f) Camera Rotation Rotates the live view and recorded video by 180° to suit special installation or shooting needs.
DJI Goggles Racing Edition User Manual confirm the target direction and wait for the icon to appear. c) Tap again to confirm the selection and the aircraft will fly in that direction. d) Press the back button on the Goggles RE to exit the current target direction or TapFly. 2. ActiveTrack a) Use the touch panel to enter “Intelligent Flight Mode > ActiveTrack”. b) Move your head to control the cursor in the Goggles RE and then tap the touch panel to select the target subject.
DJI Goggles Racing Edition User Manual Flight Photos and Videos Select “Tools > Playback” to enter the playback page for flight photos and videos (shot by DJI aircraft only), or demo videos. IN-FlIGHT (GPS) FLIGHT MODE GPS Local Storage 12 Aircraft Storage 02:36 100% 60% Demo Videos VPS 2.5 m VS 2.5 m s HS 10 m s D 200 M H 300 m ISO AUTO S 30 F 2.8 EV 0.
DJI Goggles Racing Edition User Manual Ensure to use the Panorama feature when the aircraft’s motors are turned off. When using the Goggles RE with the Mavic Pro, if a user plays the video from aircraft storage instead of having a live view, then this video will be displayed on all devices synchronously. DO NOT play aircraft storage videos during flight to ensure safety. Video Play Goggles RE support both Micro SD card and HDMI connection to view HD video. For HD video playback: 1.
DJI Goggles Racing Edition User Manual DO NOT charge the Goggles RE when it is powered on to ensure safety. When using a non-standard charger, the maximum output voltage must not exceed 12 V. The Goggles RE battery is located in the headband. You can connect the headband individually to the charger for charging. The battery is fully charged when the charging status indicator turns off. A standard charger is recommended for charging. It takes approximately four hours to fully charge the battery.
Upgrading Firmware DJI Assistant 2 Use DJI Assistant 2 to upgrade the Goggles RE. 1. Power on the Goggles RE and connect them to a computer with a Micro USB cable. 2. Launch DJI Assistant 2 and login with a registered DJI account. 3. Select “Goggles RE” and click “Firmware Upgrade” on the left-hand side. 4. Select the firmware version required. 5. DJI Assistant 2 will download and upgrade the firmware automatically. 6. Restart the Goggles RE after the firmware upgrade is complete.
Cleaning and Maintenance Be sure to unplug the charger from the power outlet before cleaning and ensure that there are no cables connected. Cleaning the Goggles RE Wipe and clean the surface of the Goggles RE with a soft clean cloth. To clean the facial pad, first drag it from the left or right side to the inside, then detach the other parts. Run water over the facial pad, then wipe it with a soft, dry cloth until it is completely dry.
Specifications DJI Goggles RE Weight (Typical) Goggles RE Body: 502 g Headband: 500 g Dimensions Goggles RE Body: 195×155×110 mm Headband (folded): 255×205×92 mm Screen Size 5 inch×2 Screen Resolution 3840×1080 (single screen: 1920×1080) Refresh Rate 60 Hz FOV 85° (single screen) Interpupillary Distance Range 58 – 70 mm Communication Frequency 2.4 GHz / 5.8 GHz Transmitter Power (EIRP) 2.4 GHz: 25.5 dBm (FCC); 18.5 dBm (CE); 19 dBm (SRRC) 5.8 GHz: 25.5 dBm (FCC); 12.5 dBm (CE); 18.
DJI Goggles Racing Edition User Manual DJI OcuSync Air System Weight Air Unit: 43.7 g; Camera (cable included): 18.2 g Pagoda Antenna: 9.4 g; Cylindrical Antenna: 9.4 g; Dipole Antenna: 4.2 g Dimensions Air Unit: 72 × 33 × 14 mm Camera: 29.4 × 28.2 × 22.6 mm Communication Frequency 2.4 GHz / 5.8 GHz Transmitter Power (EIRP) 2.4 GHz: 22.5 dBm (FCC); 18.5 dBm (CE); 19 dBm (SRRC) 5.8 GHz: 25.5 dBm (FCC); 12.5 dBm (CE); 25.5 dBm (SRRC) Live View Modes and Min.
DJI Support http://www.dji.com/support This content is subject to change. Download the latest version from www.dji.com/dji-goggles-re If you have any questions about this document, please contact DJI by sending an email to DocSupport@dji.com. DJI is a trademark of DJI. Copyright © 2017 DJI All Rights Reserved. 28 © 2017 DJI All Rights Reserved.
