Manual Prepare - 59
Plan Bore Path
CMW

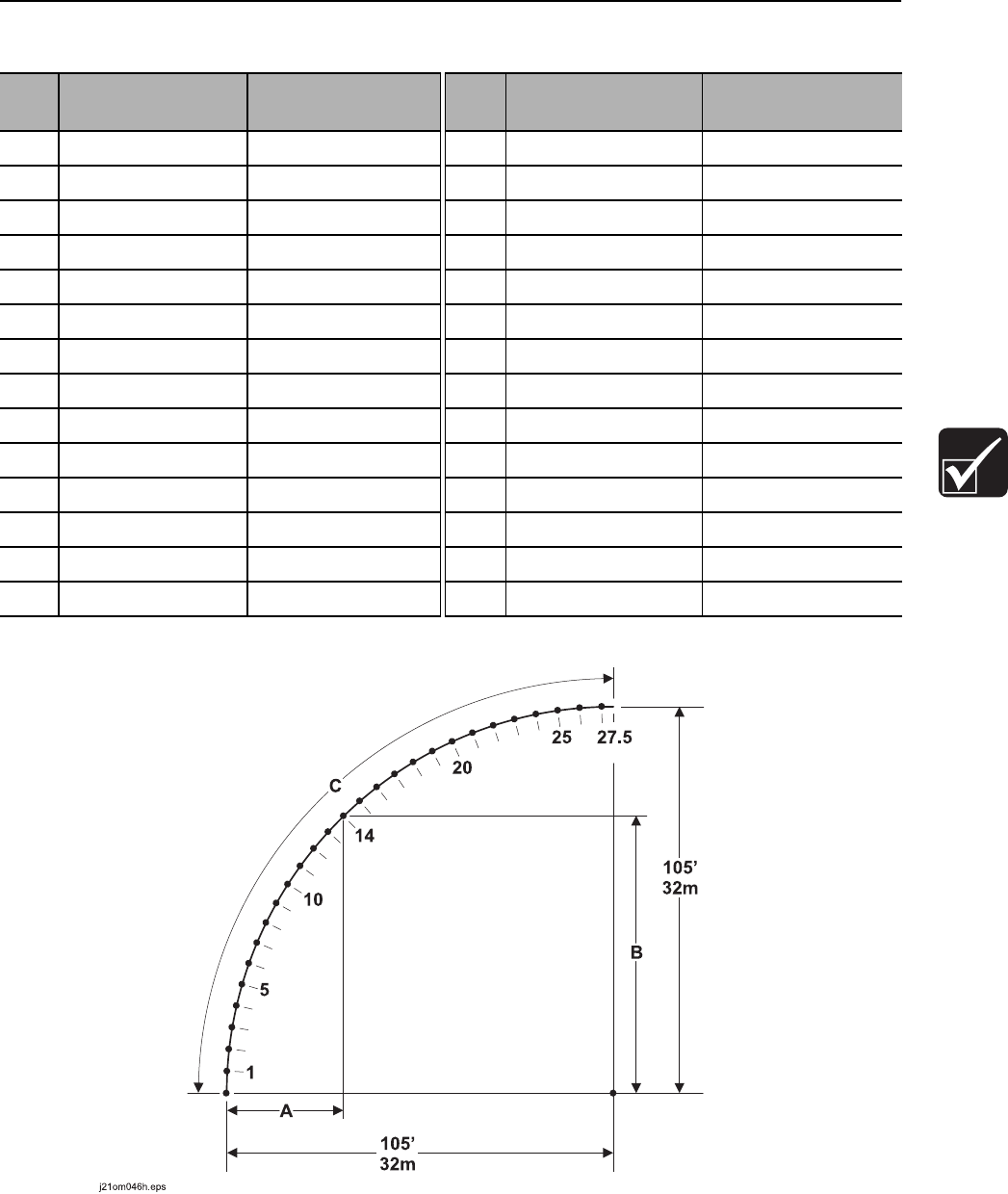

Pipe-By-Pipe Bend Limits
Pipe
(C)
Forward (B) Deflection (A) Pipe
(C)
Forward (B) Deflection (A)
1 6 ft 0 in (1.8 m) 0 ft 2 in (0.1 m) 15 79 ft 5 in (24.3 m) 36 ft 3 in (11.1 m)
2 12 ft 0 in (3.7 m) 0 ft 8 in (0.2 m) 16 83 ft 2 in (25.4 m) 40 ft 11 in (12.5 m)
3 17 ft 11 in (5.5 m) 1 ft 6 in (0.5 m) 17 86 ft 8 in (26.2m) 45 ft 9 in (13.9 m)
4 23 ft 9 in (7.2 m) 2 ft 9 in (0.8 m) 18 89 ft 11 in (27.4m) 50 ft 10 in (15.5 m)
5 29 ft 7 in (9 m) 4 ft 3 in (1.3 m) 19 92 ft 11 in (28.3m) 56 ft 0 in (17 m)
6 35 ft 4 in (10.8 m) 6 ft 1 in (1.8 m) 20 95 ft 6 in (29.2m) 61 ft 5 in (18.7 m)
7 40 ft 11 in (12.5 m) 8 ft 3 in (2.5 m) 21 97 ft 10 in (29.9m) 66 ft 11 in (20.4 m)
8 46 ft 4 in (14.1 m) 10 ft 9 in (3.2 m) 22 99 ft 11 in (30.5m) 72 ft 7 in (22.2 m)
9 51 ft 8 in (15.7 m) 13 ft 7 in (4.2 m) 23 101 ft 7 in (31m) 78 ft 4 in (23.9 m)
10 56 ft 9 in (17.3 m) 16 ft 8 in (5.1 m) 24 102 ft 11 in (31.4m) 84 ft 2 in (25.7 m)
11 61 ft 9 in (18.8 m) 20 ft 1 in (6.2 m) 25 103 ft 11 in (31.7m) 90 ft 1 in (27.5 m)
12 66 ft 6 in (20.3 m) 23 ft 9 in (7.2 m) 26 104 ft 7 in (31.9m) 96 ft 1 in (29.4 m)
13 71 ft 0 in (21.6 m) 27 ft 8 in (8.4 m) 27 105 ft 0 in (32m) 102 ft 1 in (31.2 m)
14 75 ft 4 in (23 m) 31 ft 10 in (9.8 m) 27.5 105 ft 0 in (32m) 105 ft 0 in (32 m)
Pipe 14 is illustrated.
