User Manual

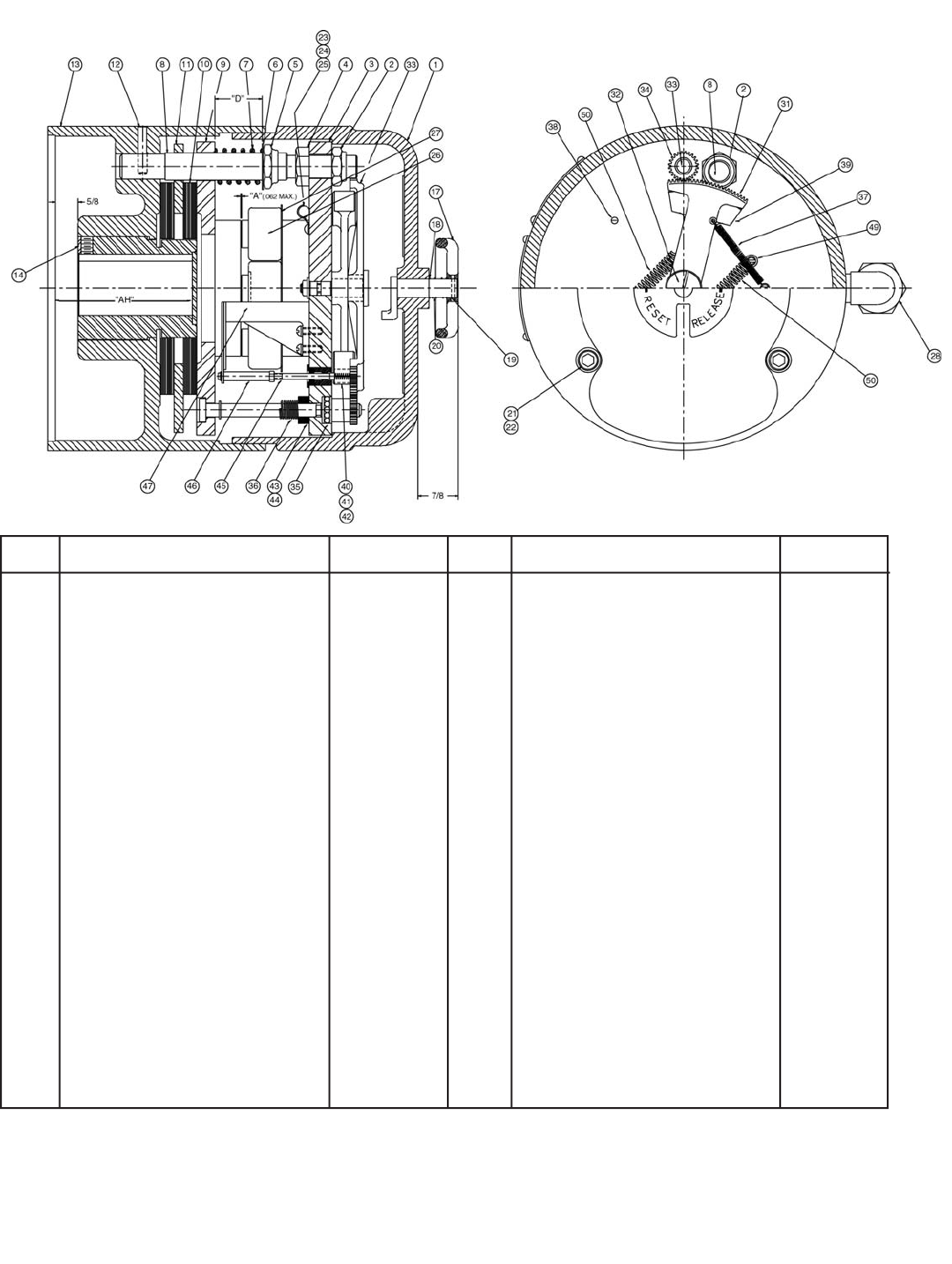

Item Description Part
No. No.
1 Cover K070091-001
2 Gap Adjusting Nut W003001-022
3 Magnet & Coil Assembly, 3 Phase K070283-***
3 Magnet & Coil Assembly, 1 Phase K070282-***
4 Gap Adjusting Nut W003008-022
5 Torque Adjusting Nut W003001-023
6 Adjusting Nut Washer W004004-014
7 Torque Spring, 10 & 35 lb. ft. G070011-001
7 Torque Spring, 15 & 75 lb. ft. G070012-001
7 Torque Spring, 25 & 50 lb. ft. G070019-001
8 Stud G070175-***
9 Pressure Plate K070048-002
10 Rotating Friction Disc 10 - 50 lb. ft. H070103-005
10 Rotating Friction Disc 75 lb. ft. H020009-002
11 Stationary Disc 25 - 75 lb. ft. only K070485-001
12 Stud Lock Pin W005005-001
13 Brake Bracket L070066-***
14 Hub Assembly H070044-***
15 Mounting Bolt (not shown) W001013-132
16 Locking Screw W002002-001
17 Manual Release & Reset Knob G070141-003
18 Knob Release Spring G070202-001
19 Knob Roll Pin W005003-044
20 Reset Arm G070156-001
21 Cover Bolts W001013-108
22 Lock Washer W004006-008
23 Wiring Harness Guide G070218-001
24 Wiring Harness Clamp W021001-001
Item Description Part
No. No.
25 Clamp Screw W001002-051
26 Coil, 3 Phase (included in item 3) H070033-***
26 Coil, 1 Phase (included in item 3) H070035-***
27 Insulating Washer, 3 Phase G070037-001
27 Insulating Washer, 1 Phase G070029-001
28 Condulet Assembly G070148-001
29 Nameplate H050020-001
30 Press Nut W003012-024
31 Drive Gear G070167-001
32 Pivot Stud G070153-001
33 Release Rod w/ Snap Ring G070134-002
34 Release Gear G070140-001
35 Release Bearing W009002-001
36 Release Rod Spring G060010-001
37 Release Reset Spring G070159-001
38 Release Stop Stud G070144-001
39 Driver G070152-001
40 Lock Bushing G070119-001
41 Lock Pin G070157-001
42 Lock Spring G070158-001
43 Felt Washer G070162-001
44 Washer W004001-003
45 Control Rod Wiper Assembly*
46 Control Rod Assembly*
47 Thermal Release Bracket Assembly*
49 Driver Spring Stud G070143-001
50 Drive Spring (1, 2, & 3 Disc) G070160-001
50 Drive Spring (4 & 5 Disc) G070160-002
4
*Install only at factory.
***Varies by brake model–provide model and serial number.
