Fireplace Installation

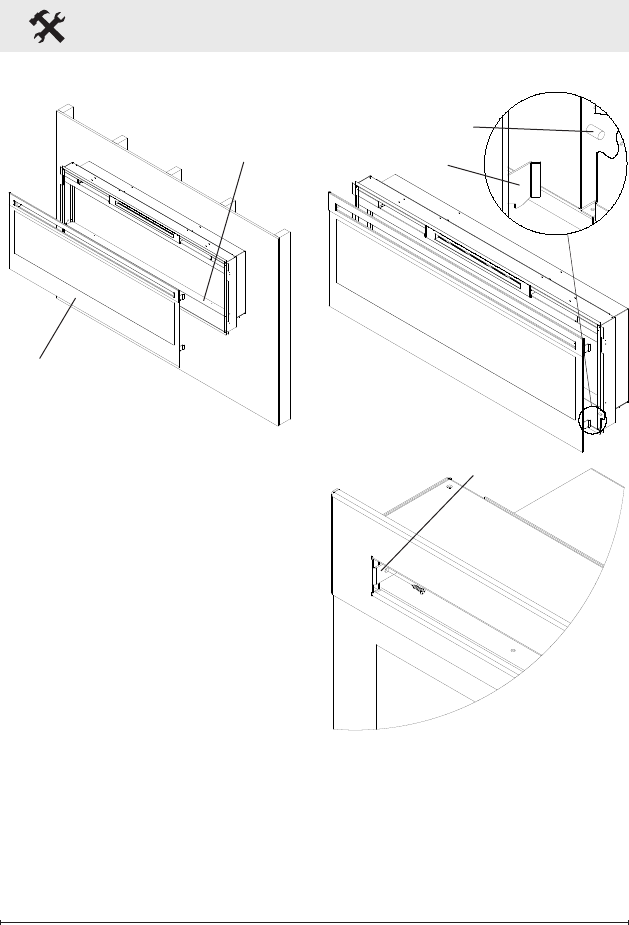

Figure 17
Tab
Figure 16
Hooks (4)
Mounts (4)
5. Drive four supplied mount-
ing screws through the four
mounting holes located on the
inside surface of the replace
chassis, into wall studs (Figure
14).
6. Refer to Front Glass Installa-
tion section for nal installation
procedures.
Front Glass Installation
1. Evenly distribute supplied
glass rock on the front tray of
the fireplace (Figure 15).
2. Carefully mount front glass as-
sembly so that the front glass
hooks (4) hang on the front
glass mounts on the fireplace
(4) (Figure 16).
3. Use the supplied two Phillips
sheet metal screws to fasten
the glass assembly tabs to the
fireplace (Figure 17).
4. If unit is not hard-wired, plug
fireplace into a 15 Amp, 120
Volt outlet (refer to NOTE 1).
Figure 15
Front tray
Front glass
assembly
