How to Guide

12 www.dimplex.com
Fireplace Installation
Partial Recessed
Installation - 2x4 Framing
CAUTION: Two people may be
required for various steps of this
procedure.
1. Prepare a wall with a framed
opening of 30 ½ in. (77.5 cm)
wide x 16 ½ in. (42 cm) high
(Figure 7).
!
NOTE: The sizing has allowed
for ¼ in. (6.4 mm) around the
replace insert for ease of instal-
lation. This replace does not
require any additional venting.
!
NOTE: It is recommended that the
bottom of the unit not be mounted
higher than 40 in. (102 cm) from
the ground to maintain an opti-
mized viewing angle of the ame.
2. Choose your method of supplying
power to the unit:
• Plug in (you may run the power
cord out of the framed wall open-
ing to an existing outlet or install
an outlet on a nearby wall stud
within the wall).
• Hard wire the replace (recom-
mended). Follow the hard wiring
instructions on page 8.
WARNING: Do not attempt to wire
your own new outlets or circuits. To
reduce the risk of re, electric shock
or injury to persons, always use a
licensed electrician.
WARNING: Ensure that the circuit
on which the replace is to be
installed has the power cut o󰀨 at
the service panel until installation
is complete.
3. Lift replace and insert into open-
ing (Figure 8).
4. Use the supplied bubble level to
level the replace within the fram-
ing, adjust as required.
5. Drive four supplied mounting
screws through the four mounting
holes located in each corner of the
replace chassis, into wall studs
(Figure 8).
6. Refer to Front Glass Installa-
tion section for nal installation
procedures.

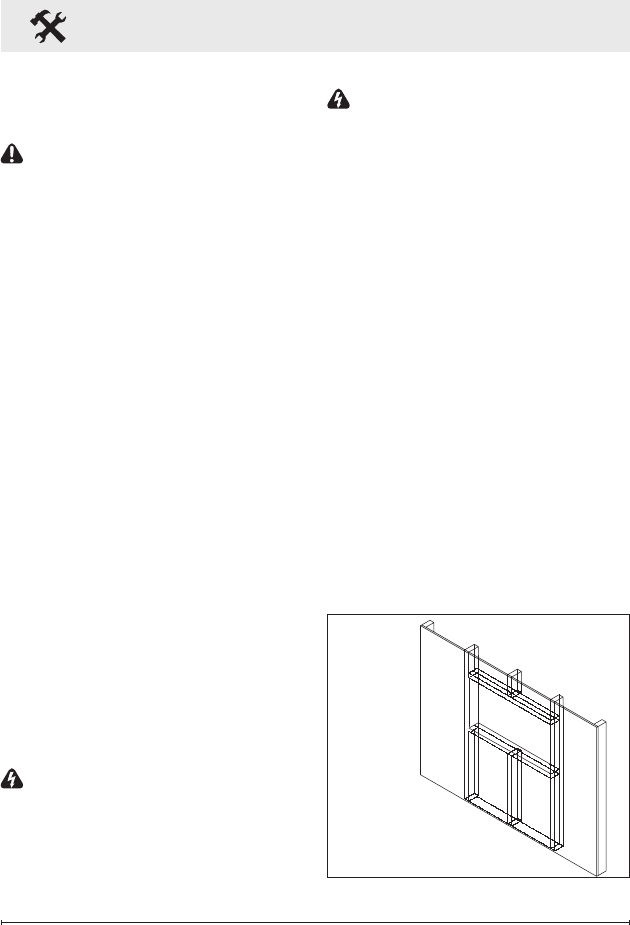

Figure 7
2 x 4 Framing
